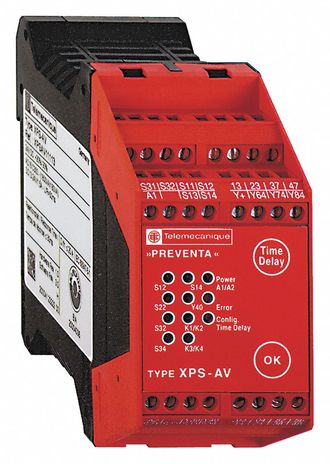

Square D XPSAV11113

Name: Square D XPSAV11113
Brand: Square D
SKU: CS1679539
Availability: OutOfStock

SKU: CS1679539MPN: XPSAV11113

module XPSAV - Emergency stop - 24 V DC, time delay 0...300 s

Product Details

Module Xpsav Emergency Stop, 24 V Dc, Time Delay 0...300 S

Ith Conventional Free Air Thermal Current	20 A
Ambient Air Temperature For Operation	-10-55 °C
Ambient Air Temperature For Operation 1	-10-55 °C
Ambient Air Temperature For Storage	-25-85 °C
Function Of Module	emergency stop button with 2 NC contacts, monitored start# #emergency stop monitoring 2-channel wiring# #monitoring of a movable guard associated with 2 switches automatic start# #emergency stop button with 1 NC contact, automatic start or unmonitored sta
Input Protection Type	internal, electronic
Maximum Response Time On Input Open	30 ms
Mounting Support	35 mm symmetrical DIN rail
Product Certifications	UL# #TÜV# #CSA
Product Or Component Type	Preventa safety module
Range Of Product	Preventa Safety automation
Safety Module Application	for emergency stop and switch monitoring
Safety Module Name	XPSAV
Standards	EN/ISO 13850# #EN 1088/ISO 14119# #EN/IEC 60947-5-1# #EN/IEC 60204-1
Synchronisation Time Between Inputs	1.5 s for guard# #unlimited for emergency stop
Time Delay Range	0…300 s
Type Of Start	configurable
