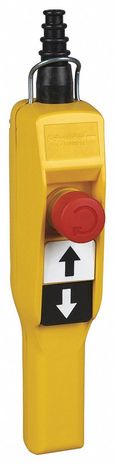

Square D XACA2014
SKU: CS4813947MPN: XACA2014
Harmony XAC, Pendant control station, plastic, yellow pistol grip, 2 push buttons + 1 emergency stop

Contact us for pricing and availability
Product Details
Pendant Station XAC-A Pistol Grip - 2 Push Buttons 1 Emergency Stop
Attributes
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Operation 1 | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Contact Operation | slow-break |
| Control Station Application | control of single speed hoist motor |
| Control Station Colour | yellow |
| Control Station Composition | 2 push-buttons + 1 emergency stop |
| Control Station Type | double insulated |
| Control Type | intuitive |
| Device Short Name | XACA pistol grip |
| Electrical Circuit Type | control circuit |
| Enclosure Material | polypropylene |
| Enclosure Type | complete ready for use |
| Maximum Resistance Across Terminals | 25 MOhm |
| Mechanical Durability | 1000000 cycles |
| Mechanical Interlocking | with mechanical interlocking |
| Product Certifications | UL# #CSA |
| Product Or Component Type | pendant control station |
| Protective Treatment | TH |
| Range Of Product | Harmony XAC |
| Standards | EN/ISO 13850: 2006# #EN/IEC 60204-32# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60947-5-5# #UL 508 |
| Terminal Identifier | (13-14)NO# #(11-12)NC |
| Terminals Description Iso N 1 | (13-14)NO |
| Terminals Description Iso N 2 | (11-12)NC |
Specifications
| SKU | CS4813947 |
|---|---|
| MPN | XACA2014 |
