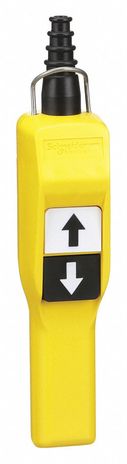

Square D XACA201

Name: Square D XACA201
Brand: Square D
SKU: CS474396
Price: 146.25 USD
Availability: OutOfStock

SKU: CS474396MPN: XACA201

Pendant Push Button Station 2NO Yellow

$146.25

Unit

Available on backorder

Quantity

remove

add

Product Details

Pendant Push Button Station Legend Up/Down Contact Form 2NO Mechanical Interlock Yes NEMA Rating 4 4X 5 Housing Color Yellow Hub ½ In.-14 NPT Action Momentary Number of Operators 2 Type of Operator Push Button Number of Speeds 1 IP Rating 65 Contact Rating 10A @ 600V AC/DC NEMA Contact Rating Designation A600/Q600 Height 4.33 in Width 2.76 in Depth 3.27 in Housing Material Polypropylene Standards CE CSA UL

Attributes

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Contact Operation	slow-break
Control Station Application	control of single speed hoist motor
Control Station Colour	yellow
Control Station Composition	2 push-buttons
Control Station Type	double insulated
Control Type	intuitive
Device Short Name	XACA pistol grip
Electrical Circuit Type	control circuit
Enclosure Material	polypropylene
Enclosure Type	complete ready for use
Maximum Resistance Across Terminals	25 MOhm
Mechanical Durability	1000000 cycles
Mechanical Interlocking	with mechanical interlocking
Product Certifications	CSA# #UL
Product Or Component Type	pendant control station
Protective Treatment	TH
Range Of Product	Harmony XAC
Standards	EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60204-32# #UL 508
Terminal Identifier	(11-12)NC# #(13-14)NO
Terminals Description Iso N 1	(13-14)NO
