Square D XACA4713

Name: Square D XACA4713
Brand: Square D
SKU: CS1670007
Availability: OutOfStock

SKU: CS1670007MPN: XACA4713

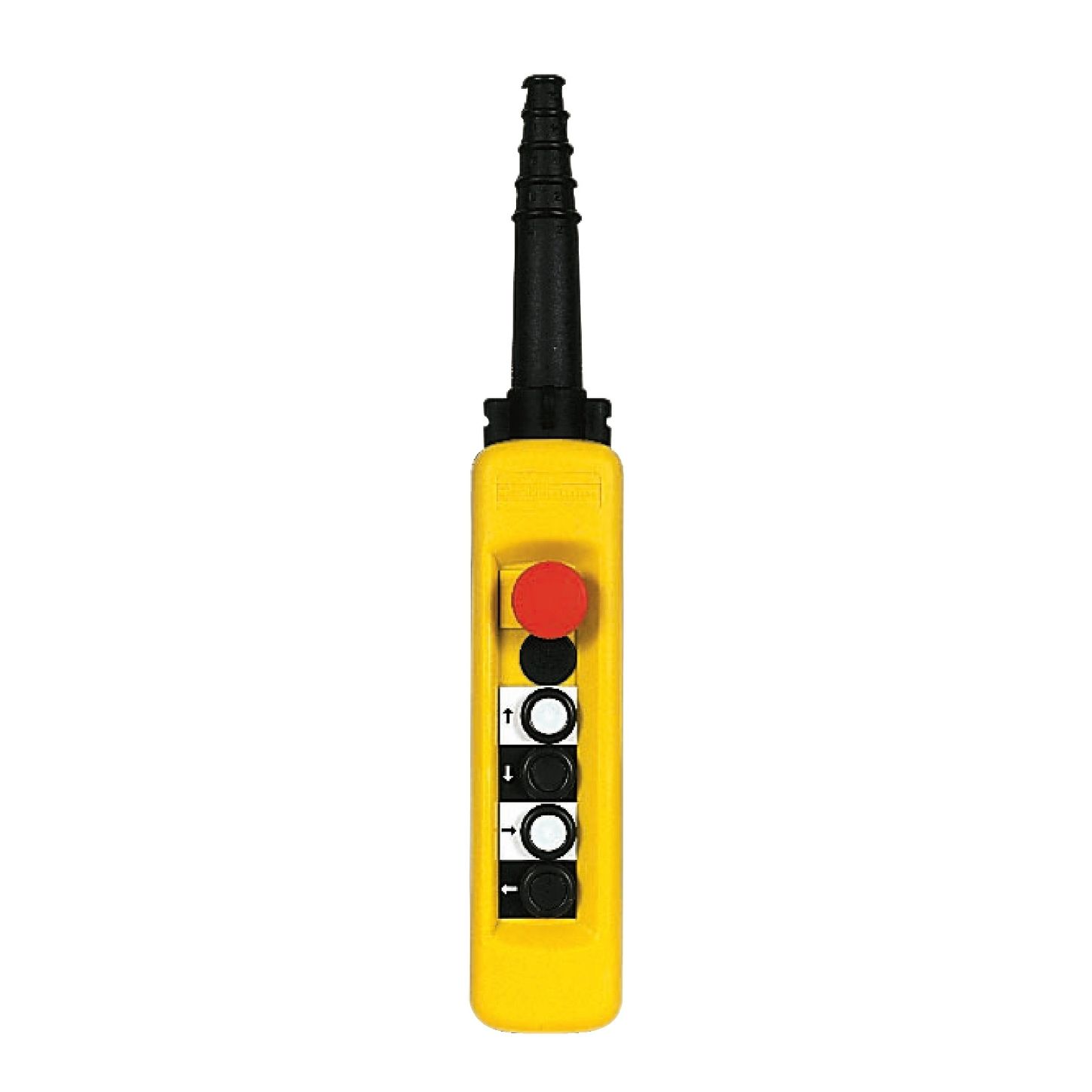

Pendant control station, Harmony XAC, plastic, yellow, 4 push buttons with 1NO, 1 emergency stop NC

Product Details

Pendant Control station XAC-A, 4 pushbuttons 1 Emergency stop

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Contact Operation	slow-break
Control Station Application	control of single speed hoist motor
Control Station Colour	yellow
Control Station Composition	4 push-buttons + 1 emergency stop
Control Station Type	double insulated
Device Short Name	XACA
Electrical Circuit Type	control circuit
Enclosure Material	polypropylene
Enclosure Type	complete ready for use
Maximum Resistance Across Terminals	25 MOhm
Mechanical Durability	1000000 cycles
Mechanical Interlocking	with mechanical interlocking between pairs
Product Certifications	GOST# #CCC
Product Or Component Type	pendant control station
Protective Treatment	TH
Range Of Product	Harmony XAC
Standards	UL 508# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/IEC 60204-32
Terminal Identifier	(11-12)NC# #(13-14)NO
Terminals Description Iso N 1	(13-14)NO
Terminals Description Iso N 2	(11-12)NC
