Square D LR3D22L

SKU: CS4811746MPN: LR3D22L

Thermal overload relay, TeSys Deca, 690VAC, 17 to 24A, 1NO+1NC, class 20, for unbalanced loads

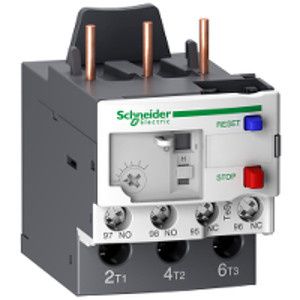

Square D LR3D22L, LR3D32L
Square D LR3D14L, LR3D16L, LR3D21L, LR3D22L, LR3D32L, LRD07L, LRD08L, LRD10L, LRD12L, LRD14L, LRD21L, LRD22L
Square D LR3D22L, LR3D32L
Square D LR3D14L, LR3D16L, LR3D21L, LR3D22L, LR3D32L, LRD07L, LRD08L, LRD10L, LRD12L, LRD14L, LRD21L, LRD22L
$75.16
Unit
Available on backorder
remove
add

Product Details

TeSys LRD Thermal Overload Relays - 17...24 A - class 20

Attributes

Ambient Air Temperature For Storage -60-70 °C
Auxiliary Contact Composition 1 NO + 1 NC
Device Short Name LR3D
Network Frequency 0…400 Hz
Network Type DC# #AC
Product Certifications IEC# #UL# #CSA# #EAC# #ABS# #ATEX INERIS# #UKCA
Product Compatibility LC1D38# #LC1D32# #LC1D25
Product Name TeSys LRD# #TeSys Deca
Product Or Component Type non differential thermal overload relay
Range TeSys
Relay Application motor protection
Standards EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #EN 50495
Temperature Compensation -20-60 °C
Thermal Protection Adjustment Range 17-24 A

Specifications

SKUCS4811746
MPNLR3D22L
