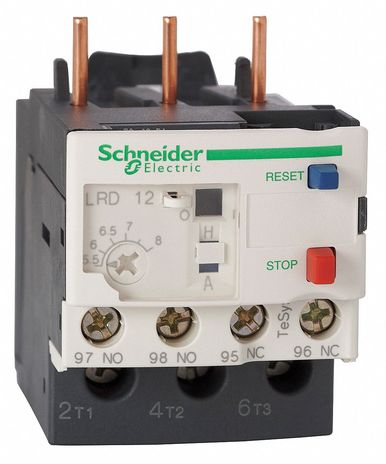

Square D LR3D16L

Name: Square D LR3D16L
Brand: Square D
SKU: CS4811743
Price: 75.16 USD
Availability: OutOfStock

SKU: CS4811743MPN: LR3D16L

Thermal overload relay, TeSys Deca, 690VAC, 9 to 13A, 1NO+1NC, class 20, for unbalanced loads

$75.16

Unit

Available on backorder

Quantity

remove

add

Product Details

TeSys LRD thermal overload relays - 9...13 A - class 20

Ambient Air Temperature For Storage	-60-70 °C
Auxiliary Contact Composition	1 NO + 1 NC
Device Short Name	LR3D
Network Frequency	0…400 Hz
Network Type	DC# #AC
Product Certifications	IEC# #UL# #CSA# #EAC# #ABS# #ATEX INERIS
Product Compatibility	LC1D18# #LC1D12# #LC1D25# #LC1D32# #LC1D38
Product Name	TeSys LRD# #TeSys Deca
Product Or Component Type	non differential thermal overload relay
Range	TeSys
Relay Application	motor protection
Standards	EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #EN 50495
Temperature Compensation	-20-60 °C
Thermal Protection Adjustment Range	9-13 A
