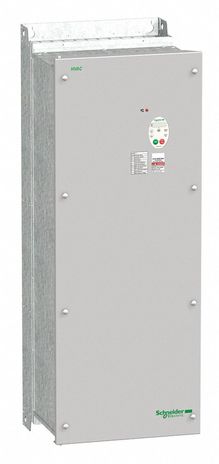

Square D ATV212WD55N4

Name: Square D ATV212WD55N4
Brand: Square D
SKU: CS4810665
Price: 5996.32 USD
Availability: OutOfStock

SKU: CS4810665MPN: ATV212WD55N4

variable speed drive, Altivar 212, 55kW, 75hp, 480V, 3 phases, with EMC class C2, IP55

$5,996.32

Unit

Available on backorder

Quantity

remove

add

Product Details

ATV212 Variable speed drive - 55kW, 75hp, 480V, 3ph, EMC class C2, IP55

Attributes

Acceleration And Deceleration Ramps	automatic based on the load# #linear adjustable separately from 0.01 to 3200 s
Ambient Air Temperature For Storage	-25-70 °C
Analogue Input Number	2.0000
Analogue Output Number	1.0000
Assembly Style	with heat sink
Asynchronous Motor Control Profile	voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)# #voltage/frequency ratio, 5 points# #voltage/frequency ratio - Energy Saving, quadratic U/f# #flux vector control without sensor, standard# #voltage/frequency ratio, 2 points
Braking To Standstill	by DC injection
Communication Port Protocol	METASYS N2# #BACnet# #Modbus# #APOGEE FLN# #LonWorks
Communication Service	read device identification (43)# #monitoring inhibitable# #time out setting from 0.1 to 100 s# #write single register (06)# #read holding registers (03) 2 words maximum# #write multiple registers (16) 2 words maximum
Connector Type	1 RJ45# #1 open style
Data Format	8 bits, 1 stop, odd even or no configurable parity
Device Short Name	ATV212
Discrete Output Number	2.0000
Emc Filter	Class C2 EMC filter integrated
Functionality	mid
Isolation	electrical between power and control
Marking	CE
Motor Slip Compensation	adjustable# #not available in voltage/frequency ratio motor control# #automatic whatever the load
Network Frequency	47.5…63 Hz
Network Number Of Phases	3 phases
Nominal Switching Frequency	8 kHz
Number Of Addresses	1-247
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Physical Interface	2-wire RS 485
Product Certifications	CSA# #UL# #C-Tick# #NOM 117
Product Destination	asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	pumps and fans in HVAC
Prospective Line Isc	22 kA
Range Of Product	Altivar 212
Regulation Loop	adjustable PI regulator
Specific Application	HVAC
Speed Drive Output Frequency	0.5-200 Hz
Standards	IEC 61800-3 environments 1 category C1# #EN 61800-3 environments 1 category C3# #EN 61800-3# #IEC 61800-3 environments 1 category C3# #IEC 61800-3 environments 1 category C2# #EN 61800-5-1# #IEC 61800-3 environments 2 category C1# #EN 61800-3 environments
Supply Voltage Limits	323-528 V
Torque Accuracy	± 15 %
Transmission Frame	RTU
Transmission Rate	9600 bps or 19200 bps
Type Of Polarization	no impedance
