Square D ATV212WD22N4

Name: Square D ATV212WD22N4
Brand: Square D
SKU: CS4810661
Price: 4144.82 USD
Availability: OutOfStock

SKU: CS4810661MPN: ATV212WD22N4

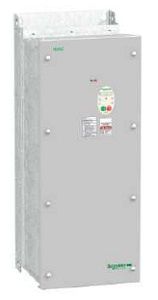

variable speed drive, Altivar 212, 22kW, 30hp, 480V, 3 phases, with EMC class C2, IP55

Square D ATV212WD11N4, ATV212WD15N4, ATV212WD22N4

$4,144.82

Unit

Available on backorder

Quantity

remove

add

Product Details

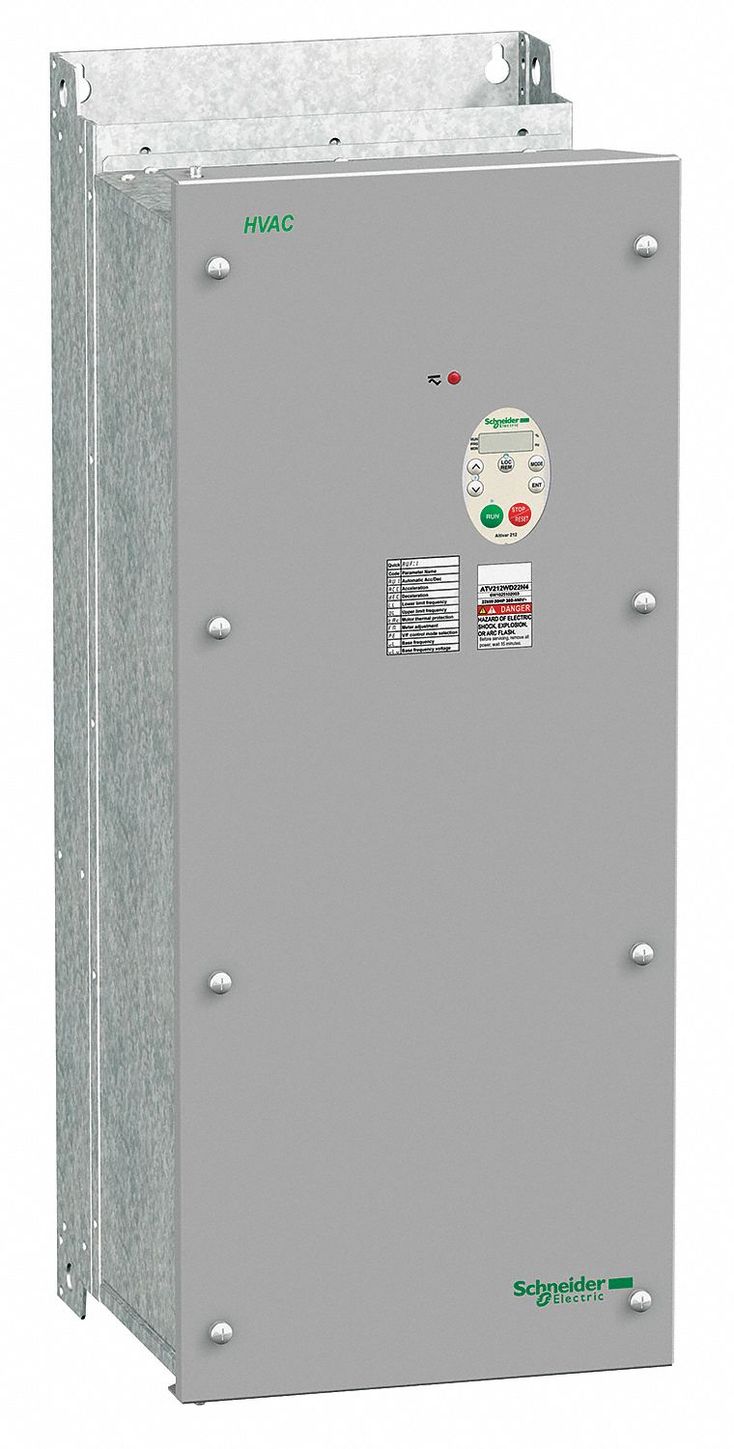

Altivar 212 VFD

30 HP* Continuous Output Current: 43.5 amps* Rated Supply Voltage Voltage: 380-480 VAC* Network Number of Phases: 3-Phases* Degree of Protection: IP55 EN/IEC 61800-5-1, 60529

The Alitvar 212 drive includes:

3 logic inputs* 2 analog inputs* 1 analog output* 2 relay outputs (with 1 NO and 1 NO/NC contacts)* Integrated 4 digit, 7-segment LED display with a 7 button keypad* RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols* LonWorks is available in an option card

Attributes

Acceleration And Deceleration Ramps	automatic based on the load# #linear adjustable separately from 0.01 to 3200 s
Ambient Air Temperature For Storage	-25-70 °C
Analogue Input Number	2.0000
Analogue Output Number	1.0000
Assembly Style	with heat sink
Asynchronous Motor Control Profile	voltage/frequency ratio - Energy Saving, quadratic U/f# #voltage/frequency ratio, 5 points# #flux vector control without sensor, standard# #voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)# #voltage/frequency ratio, 2 points
Braking To Standstill	by DC injection
Communication Port Protocol	METASYS N2# #LonWorks# #BACnet# #APOGEE FLN# #Modbus
Communication Service	write multiple registers (16) 2 words maximum# #read device identification (43)# #write single register (06)# #monitoring inhibitable# #read holding registers (03) 2 words maximum# #time out setting from 0.1 to 100 s
Connector Type	1 open style# #1 RJ45
Data Format	8 bits, 1 stop, odd even or no configurable parity
Device Short Name	ATV212
Discrete Output Number	2.0000
Emc Filter	Class C2 EMC filter integrated
Functionality	mid
Isolation	electrical between power and control
Marking	CE
Motor Slip Compensation	not available in voltage/frequency ratio motor control# #automatic whatever the load# #adjustable
Network Frequency	47.5…63 Hz
Network Number Of Phases	3 phases
Nominal Switching Frequency	8 kHz
Number Of Addresses	1-247
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Physical Interface	2-wire RS 485
Product Certifications	UL# #CSA# #NOM 117# #C-Tick
Product Destination	asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	pumps and fans in HVAC
Prospective Line Isc	22 kA
Range Of Product	Altivar 212
Regulation Loop	adjustable PI regulator
Specific Application	HVAC
Speed Drive Output Frequency	0.5-200 Hz
Standards	EN 61800-3 environments 2 category C3# #IEC 61800-3 environments 1 category C3# #IEC 61800-3 environments 2 category C1# #IEC 61800-3 category C3# #EN 61800-3 environments 2 category C2# #EN 61800-3# #IEC 61800-3 environments 1 category C2# #EN 61800-3 en
Supply Voltage Limits	323-528 V
Torque Accuracy	± 15 %
Transmission Frame	RTU
Transmission Rate	9600 bps or 19200 bps
Type Of Polarization	no impedance
