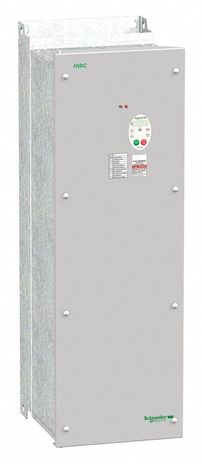

Square D ATV212WD45N4
SKU: CS4810664MPN: ATV212WD45N4
variable speed drive, Altivar 212, 45kW, 60hp, 480V, 3 phases, with EMC class C2, IP55
$5,929.44
UnitAvailable on backorder
Product Details
Altivar 212 VFD
- 60 HP* Continuous Output Current: 94 amps* AC Line Input Line Voltage: 380/480 VAC* Network Number of Phases: 3-Phases* Degree of Protection: IP55 EN/IEC 61800-5-1, 60529d
The Alitvar 212 drive includes:
- 3 logic inputs* 2 analog inputs* 1 analog output* 2 relay outputs (with 1 NO and 1 NO/NC contacts)* Integrated 4 digit, 7-segment LED display with a 7 button keypad* RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols* LonWorks is available in an option card
Attributes
| Acceleration And Deceleration Ramps | automatic based on the load# #linear adjustable separately from 0.01 to 3200 s |
| Ambient Air Temperature For Storage | -25-70 °C |
| Analogue Input Number | 2.0000 |
| Analogue Output Number | 1.0000 |
| Assembly Style | with heat sink |
| Asynchronous Motor Control Profile | flux vector control without sensor, standard# #voltage/frequency ratio, 2 points# #voltage/frequency ratio, 5 points# #voltage/frequency ratio - Energy Saving, quadratic U/f# #voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) |
| Braking To Standstill | by DC injection |
| Communication Port Protocol | BACnet# #APOGEE FLN# #Modbus# #LonWorks# #METASYS N2 |
| Communication Service | read holding registers (03) 2 words maximum# #read device identification (43)# #time out setting from 0.1 to 100 s# #write multiple registers (16) 2 words maximum# #monitoring inhibitable# #write single register (06) |
| Connector Type | 1 RJ45# #1 open style |
| Data Format | 8 bits, 1 stop, odd even or no configurable parity |
| Device Short Name | ATV212 |
| Discrete Output Number | 2.0000 |
| Emc Filter | Class C2 EMC filter integrated |
| Functionality | mid |
| Isolation | electrical between power and control |
| Marking | CE |
| Motor Slip Compensation | automatic whatever the load# #not available in voltage/frequency ratio motor control# #adjustable |
| Network Frequency | 47.5…63 Hz |
| Network Number Of Phases | 3 phases |
| Nominal Switching Frequency | 8 kHz |
| Number Of Addresses | 1-247 |
| Operating Position | vertical ± 10 degree |
| Output Voltage | <= power supply voltage |
| Physical Interface | 2-wire RS 485 |
| Product Certifications | NOM 117# #C-Tick# #UL# #CSA |
| Product Destination | asynchronous motors |
| Product Or Component Type | variable speed drive |
| Product Specific Application | pumps and fans in HVAC |
| Prospective Line Isc | 22 kA |
| Range Of Product | Altivar 212 |
| Regulation Loop | adjustable PI regulator |
| Specific Application | HVAC |
| Speed Drive Output Frequency | 0.5-200 Hz |
| Standards | IEC 61800-3 category C3# #IEC 61800-3 environments 1 category C3# #IEC 61800-5-1# #EN 61800-3 environments 2 category C2# #EN 61800-3# #EN 61800-3 environments 2 category C1# #IEC 61800-3 category C2# #EN 55011 class A group 1# #EN 61800-3 environments 1 |
| Supply Voltage Limits | 323-528 V |
| Torque Accuracy | ± 15 % |
| Transmission Frame | RTU |
| Transmission Rate | 9600 bps or 19200 bps |
| Type Of Polarization | no impedance |
Specifications
| SKU | CS4810664 |
|---|---|
| MPN | ATV212WD45N4 |
