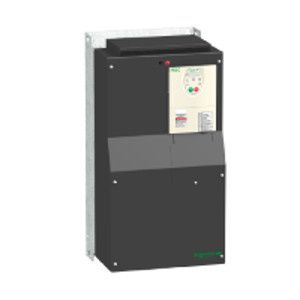

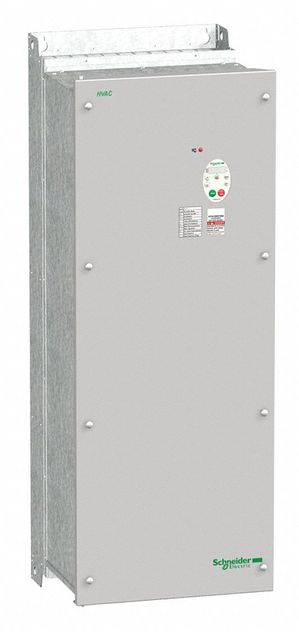

Square D ATV212HD55N4

Name: Square D ATV212HD55N4
Brand: Square D
SKU: CS4810651
Price: 6522.52 USD
Availability: OutOfStock

SKU: CS4810651MPN: ATV212HD55N4

variable speed drive, Altivar 212, 55kW, 75hp, 480V, 3 phases, with EMC, IP21

$6,522.52

Unit

Available on backorder

Quantity

remove

add

Product Details

Altivar 212 VFD

75 HP* Continuous Output Current: 116 amps* AC Line Input Line Voltage: 380/480 VAC Three Phase Input/Output* Enclosure Rating: IP20

The Alitvar 212 drive includes:

3 logic inputs* 2 analog inputs* 1 analog output* 2 relay outputs (with 1 NO and 1 NO/NC contacts)* Integrated 4 digit, 7-segment LED display with a 7 button keypad* RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols* LonWorks is available in an option card

Attributes

Acceleration And Deceleration Ramps	automatic based on the load# #linear adjustable separately from 0.01 to 3200 s
Air Flow	498 m3/h
Ambient Air Temperature For Storage	-25-70 °C
Analogue Input Number	2.0000
Analogue Output Number	1.0000
Assembly Style	with heat sink
Asynchronous Motor Control Profile	voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)# #flux vector control without sensor, standard# #voltage/frequency ratio, 5 points# #voltage/frequency ratio - Energy Saving, quadratic U/f# #voltage/frequency ratio, 2 points
Braking To Standstill	by DC injection
Communication Port Protocol	METASYS N2# #BACnet# #LonWorks# #APOGEE FLN# #Modbus
Communication Service	time out setting from 0.1 to 100 s# #write multiple registers (16) 2 words maximum# #write single register (06)# #read holding registers (03) 2 words maximum# #read device identification (43)# #monitoring inhibitable
Connector Type	1 open style# #1 RJ45
Data Format	8 bits, 1 stop, odd even or no configurable parity
Device Short Name	ATV212
Discrete Output Number	2.0000
Emc Filter	Class C2 EMC filter integrated
Functionality	mid
Isolation	electrical between power and control
Marking	CE
Motor Slip Compensation	adjustable# #automatic whatever the load# #not available in voltage/frequency ratio motor control
Network Frequency	47.5…63 Hz
Network Number Of Phases	3 phases
Nominal Switching Frequency	8 kHz
Number Of Addresses	1-247
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Physical Interface	2-wire RS 485
Power Dissipation In W	1455 W
Product Certifications	C-Tick# #UL# #CSA# #NOM 117
Product Destination	asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	pumps and fans in HVAC
Prospective Line Isc	22 kA
Range Of Product	Altivar 212
Regulation Loop	adjustable PI regulator
Specific Application	HVAC
Speed Drive Output Frequency	0.5-200 Hz
Standards	IEC 61800-3 environments 1 category C1# #EN 61800-3 environments 1 category C3# #IEC 61800-5-1# #IEC 61800-3# #IEC 61800-3 environments 2 category C1# #EN 61800-3# #EN 61800-3 environments 1 category C2# #EN 55011 class A group 1# #EN 61800-3 environments
Supply Voltage Limits	323-528 V
Torque Accuracy	± 15 %
Transmission Frame	RTU
Transmission Rate	9600 bps or 19200 bps
Type Of Polarization	no impedance
