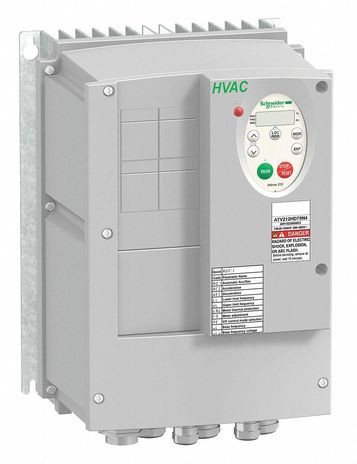

Square D ATV212H075N4

Name: Square D ATV212H075N4
Brand: Square D
SKU: CS4810644
Price: 788.68 USD
Availability: OutOfStock

SKU: CS4810644MPN: ATV212H075N4

variable speed drive, Altivar 212, 0.75kW, 1hp, 480V, 3 phases, with EMC, IP21

$788.68

Unit

Available on backorder

Quantity

remove

add

Product Details

Altivar 212 VFD

1 HP* Continuous Output Current: 2.2 amps* AC Line Input Line Voltage: 380/480 VAC Three Phase Input/Output* Enclosure Rating: IP20

The Alitvar 212 drive includes:

3 logic inputs* 2 analog inputs* 1 analog output* 2 relay outputs (with 1 NO and 1 NO/NC contacts)* Integrated 4 digit, 7-segment LED display with a 7 button keypad* RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols* LonWorks is available in an option card

Attributes

Acceleration And Deceleration Ramps	automatic based on the load# #linear adjustable separately from 0.01 to 3200 s
Air Flow	19 m3/h
Ambient Air Temperature For Storage	-25-70 °C
Analogue Input Number	2.0000
Analogue Output Number	1.0000
Assembly Style	with heat sink
Asynchronous Motor Control Profile	voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)# #voltage/frequency ratio - Energy Saving, quadratic U/f# #voltage/frequency ratio, 2 points# #flux vector control without sensor, standard# #voltage/frequency ratio, 5 points
Braking To Standstill	by DC injection
Communication Port Protocol	Modbus# #METASYS N2# #APOGEE FLN# #LonWorks# #BACnet
Communication Service	read device identification (43)# #time out setting from 0.1 to 100 s# #write single register (06)# #write multiple registers (16) 2 words maximum# #monitoring inhibitable# #read holding registers (03) 2 words maximum
Connector Type	1 open style# #1 RJ45
Data Format	8 bits, 1 stop, odd even or no configurable parity
Device Short Name	ATV212
Discrete Output Number	2.0000
Emc Filter	Class C2 EMC filter integrated
Functionality	mid
Isolation	electrical between power and control
Marking	CE
Motor Slip Compensation	not available in voltage/frequency ratio motor control# #automatic whatever the load# #adjustable
Network Frequency	47.5…63 Hz
Network Number Of Phases	3 phases
Nominal Switching Frequency	12 kHz
Number Of Addresses	1-247
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Physical Interface	2-wire RS 485
Power Dissipation In W	55 W
Product Certifications	UL# #NOM 117# #CSA# #C-Tick
Product Destination	asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	pumps and fans in HVAC
Prospective Line Isc	5 kA
Range Of Product	Altivar 212
Regulation Loop	adjustable PI regulator
Specific Application	HVAC
Speed Drive Output Frequency	0.5-200 Hz
Standards	EN 55011 class A group 1# #EN 61800-3 environments 1 category C3# #EN 61800-3 environments 2 category C2# #EN 61800-3 environments 2 category C1# #EN 61800-3 category C3# #IEC 61800-3 environments 1 category C2# #EN 61800-3 environments 1 category C2# #IE
Supply Voltage Limits	323-528 V
Torque Accuracy	± 15 %
Transmission Frame	RTU
Transmission Rate	9600 bps or 19200 bps
Type Of Polarization	no impedance
