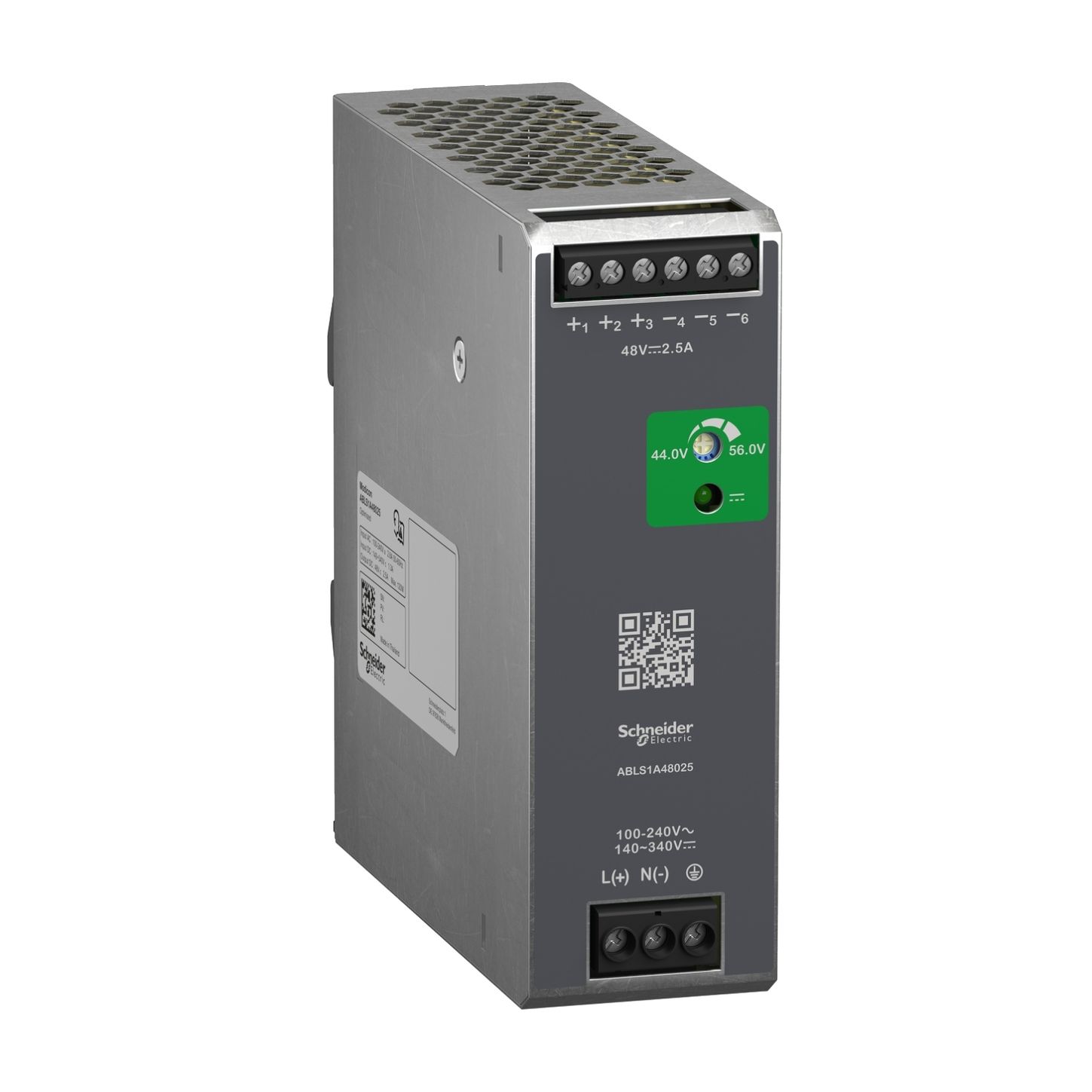

Square D ABLS1A48025

Name: Square D ABLS1A48025
Brand: Square D
SKU: CS4810566
Price: 419.71 USD
Availability: OutOfStock

SKU: CS4810566MPN: ABLS1A48025

Regulated Power Supply, 100 to 240V AC, 48V, 2.5A, single phase, Optimized

$419.71

Unit

Available on backorder

Quantity

remove

add

Product Details

Regulated Power Supply, 100-240V AC, 48V 2.5 A, single phase, Optimized

Earthing System	TN# #TT# #IT
Enclosure Material	aluminium
Load Capacitance	4000 µF
Network Frequency Limits	50-60 Hz
Output Coupling	parallel
Output Voltage Limits	44…56 V
Pollution Degree	2.0
Power Dissipation In W	23 W
Power Supply Output Current	2.5 A
Power Supply Type	regulated switch mode
Product Or Component Type	power supply
Range Of Product	Modicon Power Supply
Rated Power In W	120 W
Residual Ripple	< 150 mV
Response Time	< 1 s
Service Life	10 year(s)
Standards	EN 62368-1# #EN/IEC 61204-3# #EN 61000-6-1# #EN 61000-6-2# #EN 61000-6-3# #EN 61000-6-4# #EN 61000-3-2# #EN 61000-3-3# #UL 62368-1# #CSA C22.2 No 62368-1# #UL 508# #CSA C22.2 No 107.1# #EN/IEC 62368-1
