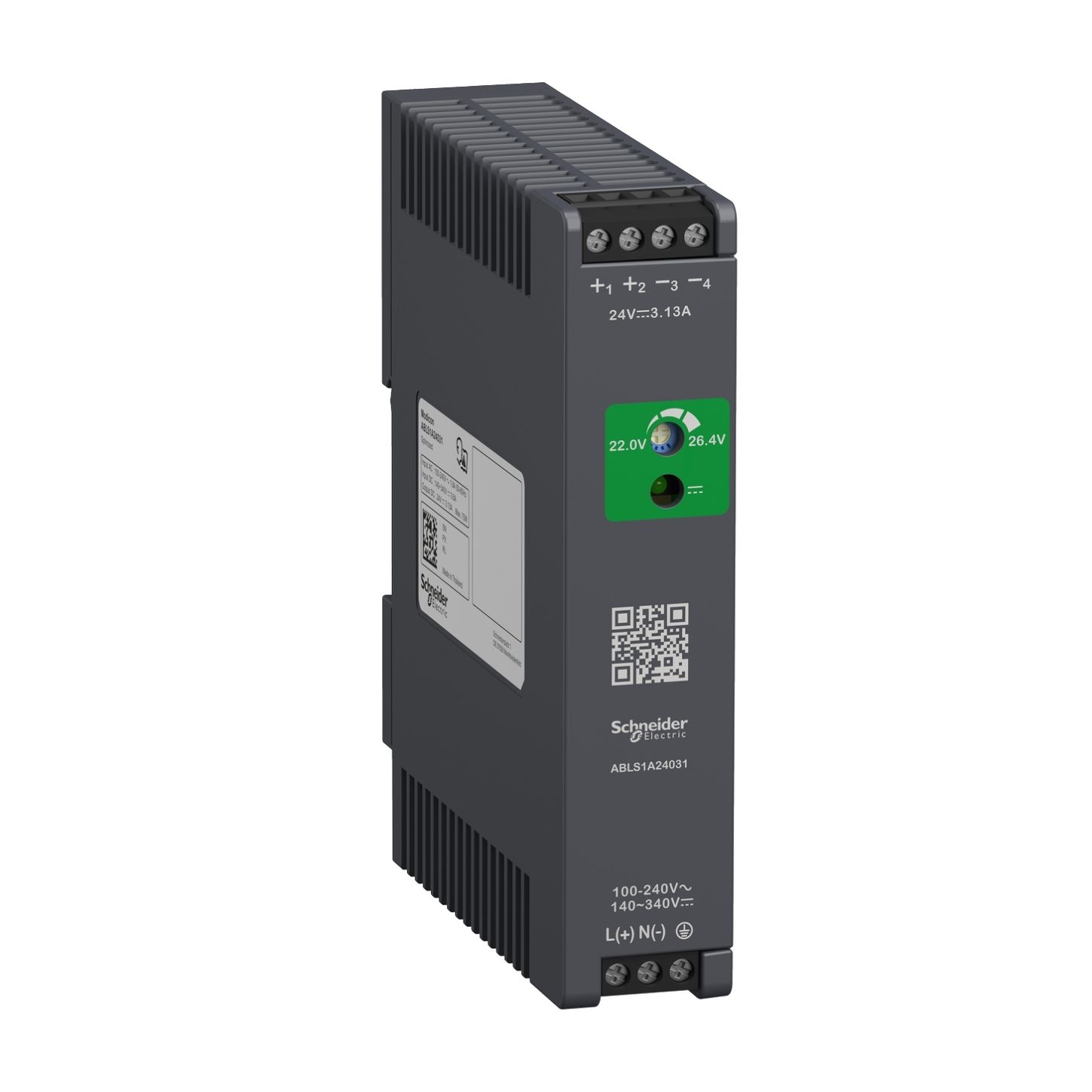

Square D ABLS1A24031

Regulated Power Supply, 100 to 240V AC, 24V, 3.1A, single phase, Optimized

Regulated Power Supply, 100-240V AC, 24V 3.1 A, single phase, Optimized:

• Range of product : Modicon Power Supply
• Product or component type : Power supply
• Power supply type : Regulated switch mode
• Variant option : Optimized
• Enclosure material : Plastic
• Nominal input voltage : 100...240 V AC single phase, 100...240 V AC 2 phases, 140...340 V DC
• Input voltage limits : 85...264 V AC, 120...375 V DC
• Rated power in W : 75 W
• Output voltage : 24 V DC
• Power supply output current : 3.13 A
• Nominal network frequency : 50…60 Hz
• Network system compatibility : TN, TT, IT
• Maximum leakage current : 1 mA 240 V AC
• Input protection type : Integrated fuse (not interchangeable) 5 A
• External protection (recommended) 20 A Curve C
• External protection (recommended) 13 A Curve B
• External protection (recommended) 10 A Curve C
• Inrush current : 40.0 A at 115 V, 80.0 A at 230 V
• Power factor : 0.55 at 115 V AC, 0.45 at 230 V AC
• Efficiency : 88 % at 230 V AC
• Output voltage adjustment : 21.6...26.4 V
• Power dissipation in W : 15 W
• Current consumption : \< 1.8 A 115 V AC, \< 1 A 230 V AC, \< 0.8 A 140 V DC
• Turn-on time :\< 1.2 s
• Holding time :\< 20 ms 115 V AC, \< 40 ms 230 V AC
• Startup with capacitive loads : 5000 µF
• Status LED : 1 LED (green)output voltage
• Depth : 102 mm
• Height : 123.6 mm
• Width : 27 mm
• Net weight : 0.22 kg
• Output coupling : Parallel, Serial
