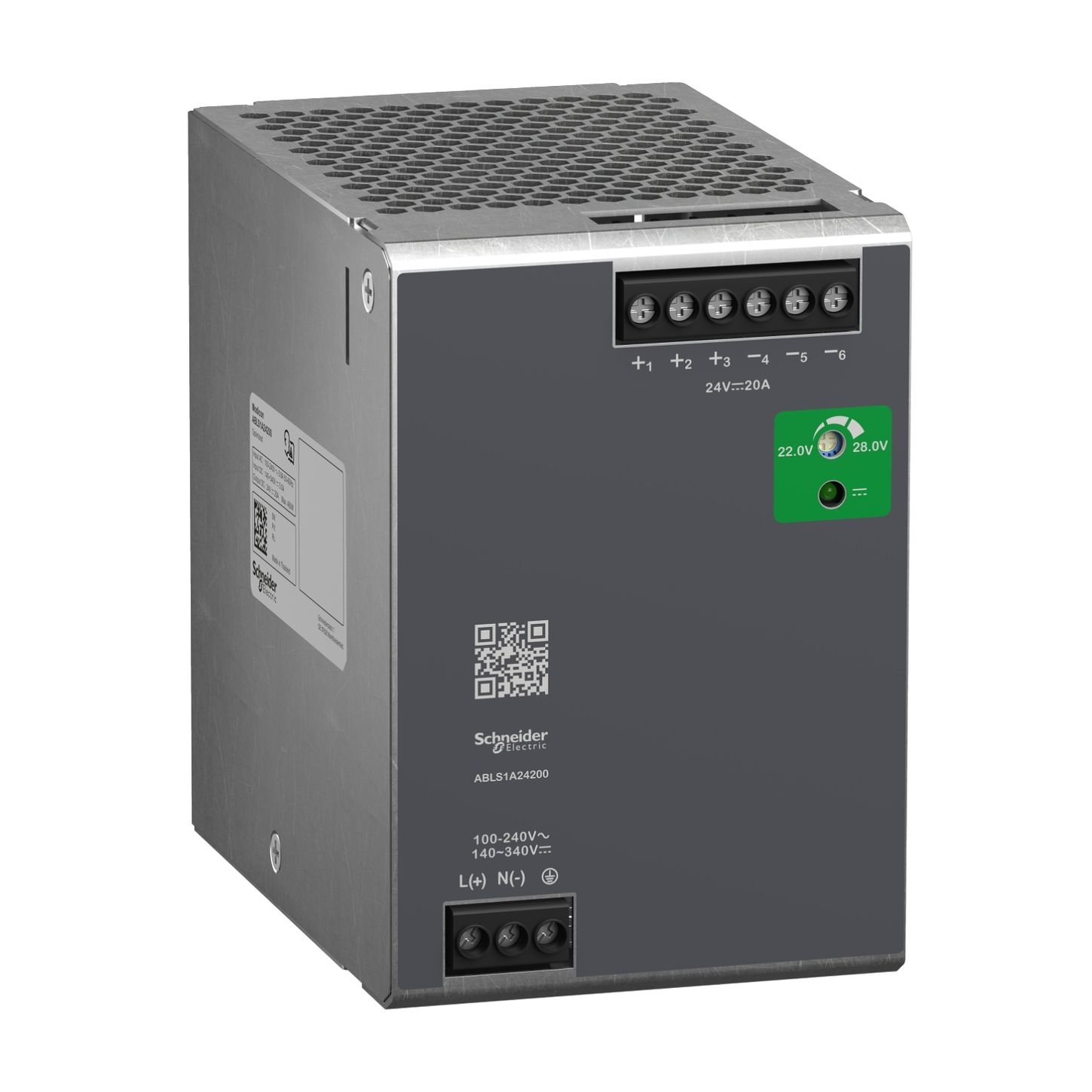

Square D ABLS1A24200

Name: Square D ABLS1A24200
Brand: Square D
SKU: CS4810565
Price: 454.57 USD
Availability: OutOfStock

SKU: CS4810565MPN: ABLS1A24200

Regulated Power Supply, 100 to 240V AC, 24V, 20A, single phase, Optimized

$454.57

Unit

Available on backorder

Quantity

remove

add

Product Details

Regulated Power Supply, 100-240V AC, 24V 20 A, single phase, Optimized

Earthing System	TN# #TT# #IT
Enclosure Material	aluminium
Load Capacitance	8000 µF
Network Frequency Limits	50-60 Hz
Output Coupling	parallel# #serial
Output Voltage Limits	22…28 V
Pollution Degree	2.0
Power Dissipation In W	60 W
Power Supply Output Current	20 A
Power Supply Type	regulated switch mode
Product Or Component Type	power supply
Range Of Product	Modicon Power Supply
Rated Power In W	480 W
Residual Ripple	< 120 mV
Response Time	< 1.5 s
Service Life	10 year(s)
Standards	EN 62368-1# #EN/IEC 61010-1# #EN 61010-2-201# #EN/IEC 61204-3# #EN 61000-6-1# #EN 61000-6-2# #EN 61000-6-3# #EN 61000-6-4# #EN 61000-3-2# #EN 61000-3-3# #UL 62368-1# #UL 61010-1# #UL 61010-2-201# #CSA C22.2 No 62368-1# #CSA C22.2 No 61010-1# #CSA C22.2 No
