Telemecanique 9038CG36N4N5

Name: Telemecanique 9038CG36N4N5
Brand: Telemecanique
SKU: CS4810332
Availability: OutOfStock

SKU: CS4810332MPN: 9038CG36N4N5UPC/EAN: 785901284338

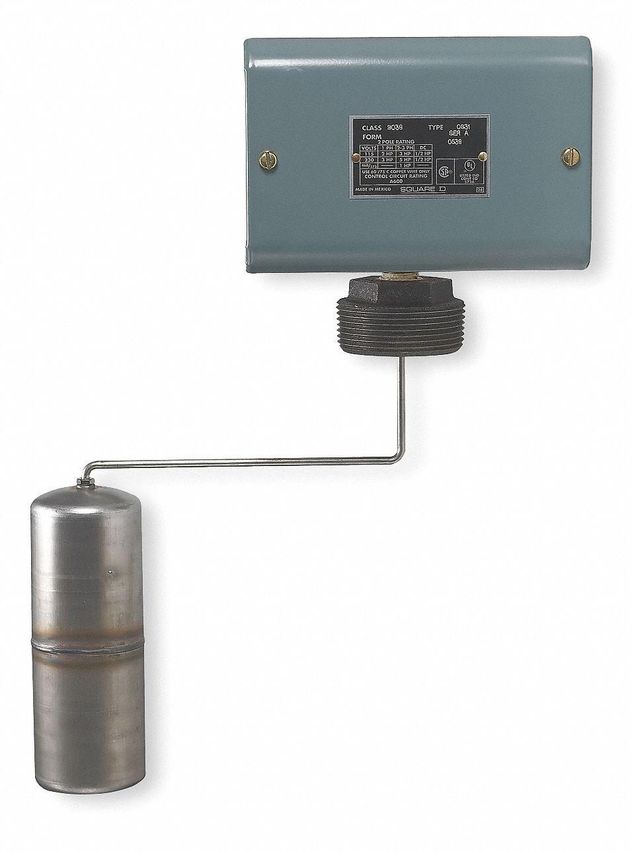

Mechanical alternator, Square D Pumptrol, mech closed tank, NEMA 1, screw in bushing, 4 NC DPST DB contacts

Product Details

Pumptrol Mechanical Alternator

Device Application: Closed Tank with bushing* Device Mounting: Screw-in Bushing* Cable Entry Number: 8 knock-outs for ½ in. or ¾ in. conduit U 508* Contacts Type and Composition: 4 NC snap action DPST-DB Form YY* Electrical Connection: Screw-clamp terminals 10 AWG* Local Signaling: with external pointer* Rated Insulation Voltage: 575V UL 508* Degree of Protection: NEMA 1 UL 50

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank with bushing
Sena Device Mounting	screw-in bushing
Sena Device Short Name	9038C
Sena Electrical Circuit Type	power circuit with control duty alarm
Sena Enclosure Material	painted cold-rolled steel
Sena Factory Modification	two-level non-alternating unit, high level alarm
Sena Float Position	left
Sena Float Rod Angle	90° (offset)
Sena Kit Composition	float# #float switch# #rod
Sena Local Signalling	with external pointer
Sena Materials In Contact With Fluid	stainlesss steel 304# #yellow brass# #stainless steel 316# #nitrile (Buna-N) or equivalent rubber# #cast iron
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Destination	for closed tank
Sena Product Or Component Type	mechanical alternator
Sena Product Specific Application	mechanically alternating the operation of two pumps or motors
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	UL 508# #CE
Sena Terminal Block Type	8 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
