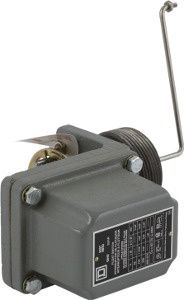

Telemecanique 9037HW33

Name: Telemecanique 9037HW33
Brand: Telemecanique
SKU: CS1652323
Availability: OutOfStock

SKU: CS1652323MPN: 9037HW33UPC/EAN: 785901075431

Float switch, Square D Pumptrol, closed tank, NEMA 4, screw in bushing, 2 NC DPST DB contacts

Product Details

Float Switch:

Type: H* Enclosure Rating: NEMA 4* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Flange* 575VAC* 2 Normally Open* 2-Pole* Float Position: Right* Float Movement: 2 to 5 Inches (Adjustable)* Float Rod Angle: 45 Degrees

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank
Sena Device Mounting	screw-in bushing
Sena Device Short Name	9037H
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	cast aluminium
Sena Factory Modification	without
Sena Float Position	right
Sena Float Rod Angle	45°
Sena Kit Composition	float switch# #rod# #float
Sena Local Signalling	with external pointer
Sena Materials In Contact With Fluid	stainless steel 316# #cast iron# #nitrile (Buna-N) or equivalent rubber# #yellow brass# #stainlesss steel 304
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Destination	for closed tank
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
