Telemecanique 9037ER9

Name: Telemecanique 9037ER9
Brand: Telemecanique
SKU: CS4810308
Availability: OutOfStock

SKU: CS4810308MPN: 9037ER9UPC/EAN: 785901485490

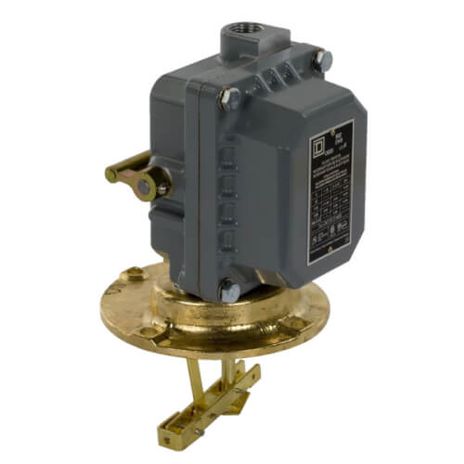

Float switch, Square D Pumptrol, closed tank, NEMA 7/9, flange mounted, 2 NC DPST DB contacts

Product Details

FLOAT SWITCH 575VAC 1HP E + OPTIONS

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank
Sena Device Mounting	flange
Sena Device Short Name	9037E
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	cast aluminium
Sena Factory Modification	without
Sena Float Position	any
Sena Float Rod Angle	horizontal
Sena Kit Composition	float switch# #rod and float are to be choosen in accessories
Sena Local Signalling	without
Sena Materials In Contact With Fluid	stainlesss steel 304# #nitrile (Buna-N) or equivalent rubber# #stainless steel 316# #yellow brass
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical or horizontal position
Sena Product Certifications	UL listed file E12443# #CSA file LR26817
Sena Product Destination	for closed tank
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	UL 508# #CE
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
