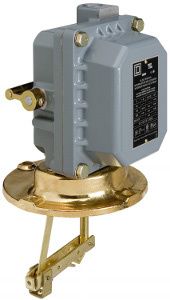

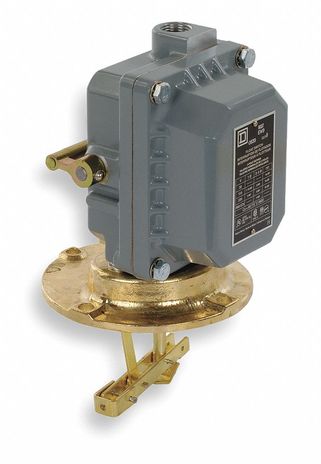

Telemecanique 9037EW9

Name: Telemecanique 9037EW9
Brand: Telemecanique
SKU: CS1652302
Price: 1092.14 USD
Availability: InStock

SKU: CS1652302MPN: 9037EW9UPC/EAN: 785901485469

Float switch, Square D Pumptrol, closed tank, NEMA 4, flange mounted, 2 NC DPST DB contacts

$1,092.14

Unit

2 Units Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

Float Switch:

Type: E* Enclosure Rating: NEMA 4* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Flange* 575VAC* 2 Normally Open* 2-Pole

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank
Sena Device Mounting	flange
Sena Device Short Name	9037E
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	cast aluminium
Sena Factory Modification	without
Sena Float Position	any
Sena Float Rod Angle	horizontal
Sena Kit Composition	float switch# #rod and float are to be choosen in accessories
Sena Local Signalling	without
Sena Materials In Contact With Fluid	stainlesss steel 304# #stainless steel 316# #yellow brass# #nitrile (Buna-N) or equivalent rubber
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical or horizontal position
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Destination	for closed tank
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
