Square D 9001SKS53FB

Name: Square D 9001SKS53FB
Brand: Square D
SKU: CS4810064
Availability: OutOfStock

SKU: CS4810064MPN: 9001SKS53FBUPC/EAN: 785901044048

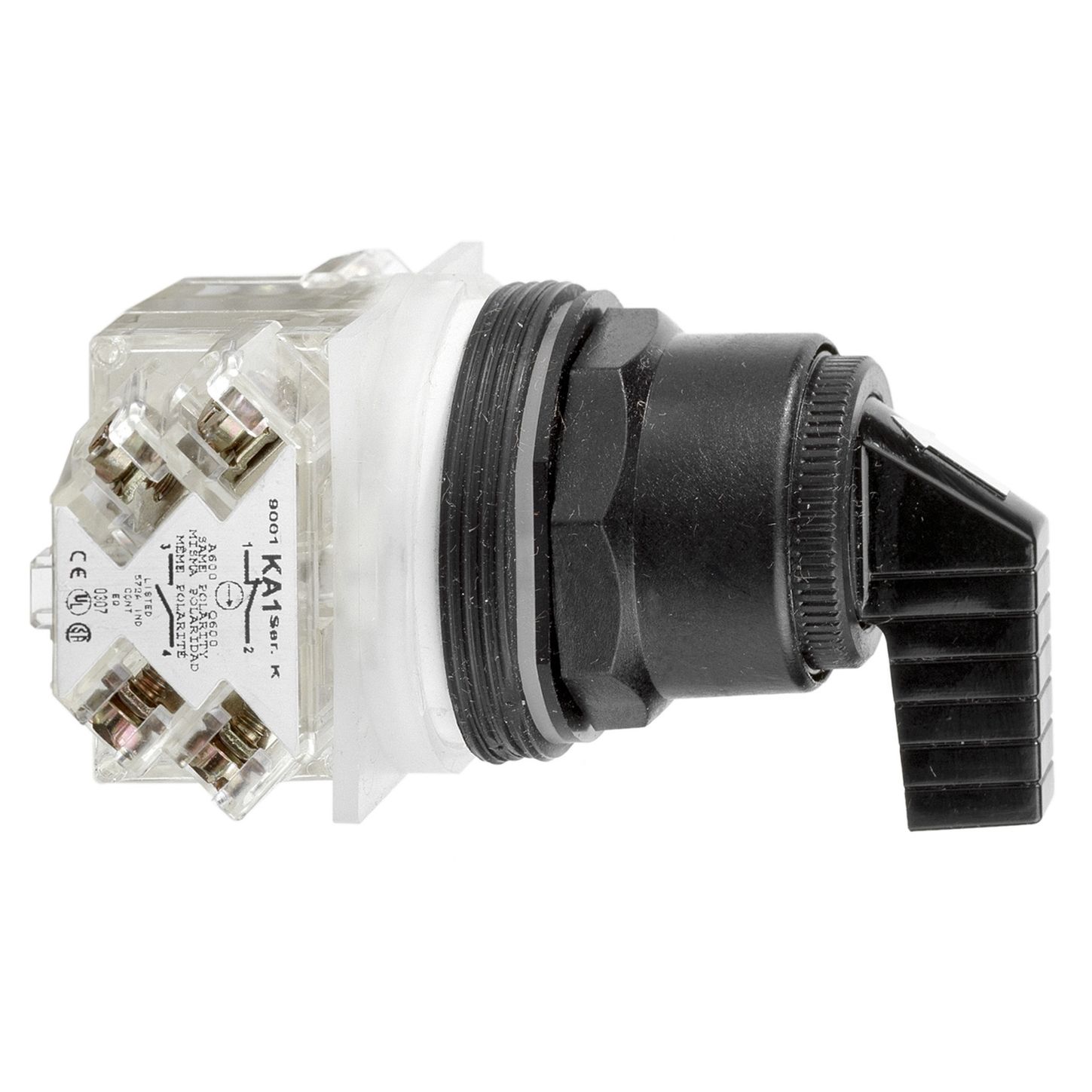

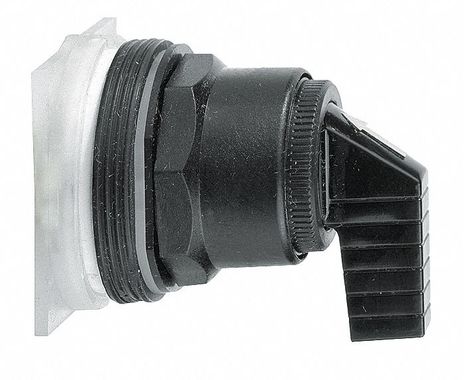

Selector switch head, Harmony 9001SK, plastic, long handle, black, 30mm, 3 positions, return both sides to center

Product Details

SELECTOR SWITCH OPERATOR 30MM SK

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	plastic
Contacts Type And Composition	without contact block
Device Presentation	basic element
Device Short Name	9001SK
Mechanical Durability	500000 cycles
Mounting Diameter	30 mm
Operator Position Information	3 positions
Product Certifications	UL 508# #NEMA
Product Or Component Type	selector switch
Protective Treatment	TC
Range Of Product	Harmony 9001SK
Shape Of Signaling Unit Head	octagonal
Standards	JIS C 852# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60947-1# #UL 508# #JIS C 4520# #EN/IEC 60947-5-4
