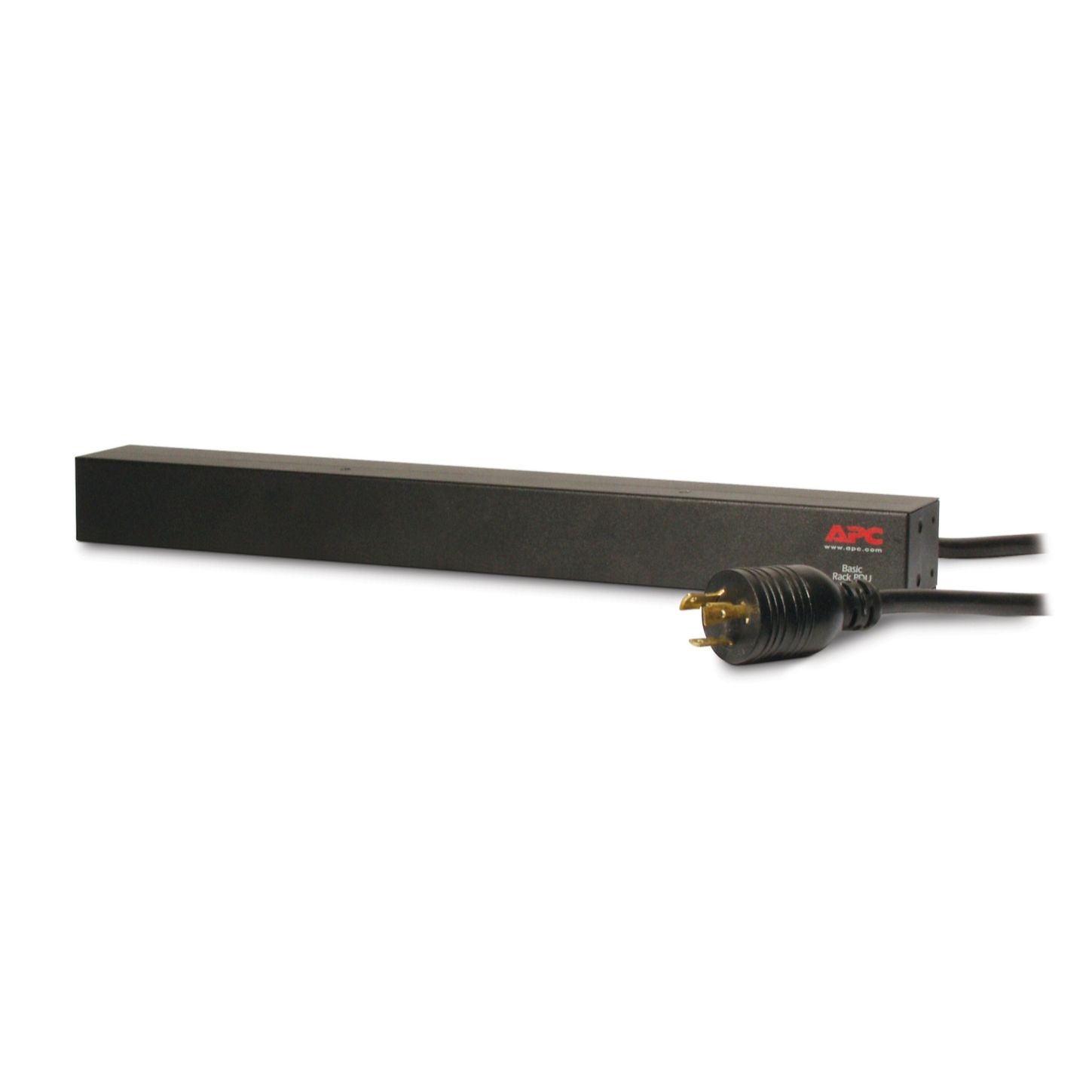

APC AP9566

Name: APC AP9566
Brand: APC
SKU: CS4805167
Availability: OutOfStock

SKU: CS4805167MPN: AP9566UPC/EAN: 731304213048

Rack PDU, Basic, 1U, 16A, 208V, (12)C13

Product Details

Rack PDU, Basic, 1U, 16A, 208V, (12)C13- Cable length : 3.66 m - Colour : Black - Depth : 5.7 cm - Height : 4.4 cm - Net weight : 2.5 kg - Width : 44.7 cm - Rated current : 16 A - Input current limits : 20 A - Load capacity : 3328 VA - Network frequency : 50/60 Hz - Plug standard : NEMA L6-20P - Input voltage : 200 V, 208 V, 230 V

Attributes

Sena In Rated Current	16 A
Sena Ambient Air Temperature For Operation	0-45 °C
Sena Ambient Air Temperature For Storage	-25-65 °C
Sena Colour	black
Sena Colour 1	black
Sena Curve Equation	efficiency
Sena Curve Load Maximum	1.0000
Sena Curve X Axis Maximum	1.0000
Sena Curve X Axis Title	load
Sena Curve X Axis Units	percentage
Sena Curve Y Axis Maximum	1.0000
Sena Curve Y Axis Minimum	0.5000
Sena Curve Y Axis Title	efficiency
Sena Curve Y Axis Units	percentage
Sena Input Current Limits	20 A
Sena Input Voltage	200 V 208 V 230 V
Sena Input Voltage 1	200 V 208 V 230 V
Sena Load Capacity	3328 VA
Sena Max Current Draw	16 A
Sena Mounting Location	front# #rear
Sena Mounting Mode	rack-mounted
Sena Mounting Preference	no preference
Sena Network Frequency	50/60 Hz
Sena Number Of Cables	1.0000
Sena Number Of Power Socket Outlets	12 IEC 60320 C13
Sena Number Of Power Socket Outlets 1	12 IEC 60320 C13
Sena Number Of Rack Unit	1U
Sena Operating Altitude	0…10000 ft
Sena Output Voltage	208 V
Sena Output Voltage 1	208 V
Sena Plug Standard	NEMA L6-20P
Sena Product Certifications	cUL listed# #UL listed
Sena Relative Humidity	0-95 %
Sena Standards	UL 60950
Sena Storage Altitude	0-50000 ft
Sena Storage Relative Humidity	0-95 %
Sena Ups Size	S
