Belimo LF24-MFT-S US

Name: Belimo LF24-MFT-S US
Brand: Belimo
SKU: CS74124
Price: 435.07 USD
Availability: OutOfStock

SKU: CS74124MPN: LF24-MFT-S US

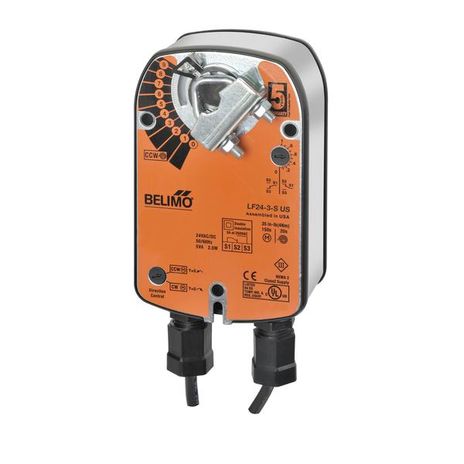

Damper Actuator, 35 in-lb [4 Nm], Spring return, AC/DC 24 V, 2...10 V, 1 x SPDT, MFT/programmable

$435.07

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo LF24-MFT-S US Data Sheet
Belimo G220B-J+LF24-SR-S US, LF120 US, LF120-S US, LF230 US, LF230-S US, LF24 US, LF24-3 US, LF24-3-S US, LF24-ECON-R03 US, LF24-ECON-R10 US, LF24-MFT US, LF24-MFT-20 US, LF24-MFT-S US, LF24-MFTUS-A02, LF24-S US Installation Instructions

Product Details

Damper Actuator, 35 in-lb [4 Nm], Spring return, AC/DC 24 V, 2...10 V, 1 x SPDT, MFT/programmable

Attributes

Control	MFT/programmable
Auxillary Switch	1 x SPDT
Fail-Safe	Spring Return
Torque	35 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	1 W
Electrical Connection	(2) 18 GA appliance cables with ½” conduit connectors, 3 ft [1 m],
Overload Protection	electronic throughout 0…95° rotation
Operating Range	2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable	Start point 0.5…30 V End point 2.5…32 V
Input Impedance	100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for PWM, On/Off and Floating point
Position Feedback	2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation	Max. 95°, adjustable with mechanical stop
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanical
Running Time (Motor)	default 150 s, variable 75…300 s
Running Time Fail-Safe	<25 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	galvanized steel
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	30 dB(A)
Torque Motor	35 in-lb [4 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Angle Of Rotation Adaptation	off (default)
Agency Listing	cULus acc. To UL 873 and CAN/CSA C22.2 No. 24-93
Shaft Diameter	⅜…½” round, centers on ½”
Auxiliary Switch	1 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, adjustable 0…95°
Override Control	MIN (minimum position) = 0% MID (intermediate position) = 50% MAX (maximum position) = 100%
Fail-Safe Function	Spring return
Control Type Web	MFT/Programmable
Fail-Safe	YES
