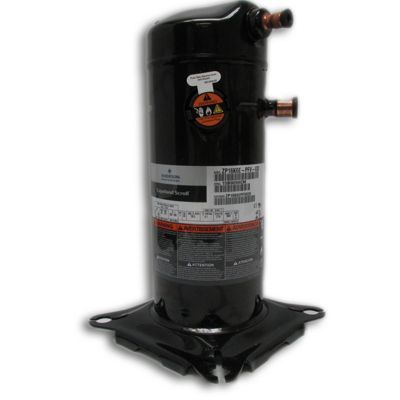

Carrier ZP16K6E-PFV-830

Name: Carrier ZP16K6E-PFV-830
Brand: Carrier
SKU: CS4231018
Price: 1136.03 USD
Availability: OutOfStock

SKU: CS4231018MPN: ZP16K6E-PFV-830Alternate Part #: CAR-ZP16K6E-PFV-830UPC/EAN: 822529668383

Factory Authorized Parts™ - ZP16K6E-PFV-830 - Compressor Scoll

Product Details

Factory Authorized Parts™ - ZP16K6E-PFV-830 - Compressor Scoll

Amps	4.4
Phase	Single
Voltage	208-230 VAC
Oil Type	Polyolester (POE)
UL Listed	Yes
BTU Output	15,500
Protection	Internal Inherent Protection
Cycle/Hertz	60 Hz
Refrigerant	R-410A
Displacement	.91 (in^3/Rev)
Compressor Type	Scroll
Sound Level (dBA)	66
Compressor Housing	Hermetic
Liquid Temperature	85°F to 115°F (29.44°C to 46.11°C)
Mass Flow (lbs/hr)	231 lbs./hr.; 262 lbs./hr.
Mounting Dimensions	7.5” x 7.5” x 15.96”
Rated Load Amps (RLA)	9
Substantial Commodity	Steel
Condensing Temperature	100°F to 130°F (37.78°C to 54.44°C)
Return Gas Temperature	65°F
Suction Line Size (OD)	¾”
Evaporating Temperature	45°F
Locked Rotor Amps (LRA)	56.3
Oil Charge Initial (oz.)	21
Discharge Connection Type	Stub
Suction Line Fitting Type	Stub
Discharge Connection Size (OD)	½”
