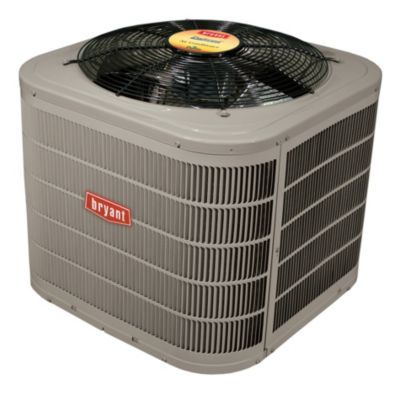

Carrier 180CNV024000

Bryant® Evolution® - 2 Ton 20 SEER Variable Speed Air Conditioner Condenser

180CNV024000

1 \= AC / Product Family

8 \= Evolution Series / Tier

0 \= 20 SEER / SEER

C \= Puron / Major Series

N \= 208/230-1 / Voltage

V \= Variable Speed / Variations

024 \= 2 Ton / Cooling Capacity

000 \= Not Defined

Bryant’s 180CNV with Evolution® Extreme Intelligence is a variable speed cooling product providing up to 20.5 SEER cooling efficiency. Lower speed operation, when needed in cooling, for enhanced comfort and dehumidification.

This product has been designed and manufactured to meet Energy Star® criteria for energy efficiency when matched with appropriate coil components. Refer to the combination ratings in the Product Data for system combinations that meet Energy Starr guidelines.

NOTE: Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.

FEATURES

• Up to 20.5 SEER/15.5 EER
• Microtube Technology™ refrigeration system
• Indoor air quality accessories available

Sound

• Sound level as low as 58 dBA in low speed

Comfort

• Variable speed scroll compressor with capacity range from 40 - 100%
• Air cooled Inverter variable speed drive
• - System requires Evolution Connextwall control (SYSTXBBITC01-A, SYSTXBBITC01-B or newer)
• Energy Tracking capability with the Evolutionr Connext wall control
• - Wall Control w/software version 13 or later (Energy Tracking has the ability to monitor and estimate the energy consumption of your Evolutionr system.)

Reliability

• Non-ozone depleting Puronr refrigerant
• Front-seating service valves
• Evolutionr Extreme Intelligence monitors critical system parameters
• High pressure switch
• Suction pressure transducer
• TXV for cooling
• Filter drier (field installed)
• Internal crankcase heater standard

Flexibility and installation:

• 2 control wires to outdoor unit
• Minimum and maximum airflow adjustments

Durability

DuraGuard™ Plus protection package:

• Solid, Durable sheet metal construction
• Steel louver coil guard
• Baked-on, complete outer coverage, powder paint

Applications

• Long-line - up to 250 feet (76.2 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser.
