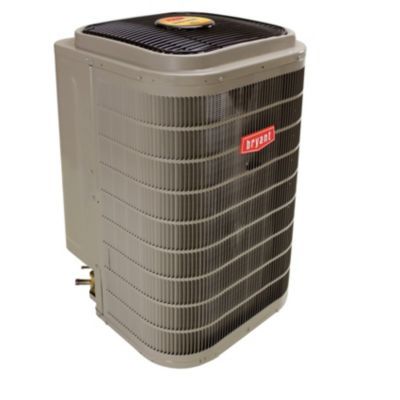

Carrier 189BNV048000
Bryant® Evolution® - 4 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit

Documents
- Carrier 189BNV024B00, 189BNV025000, 189BNV036000, 189BNV048000, 189BNV060000 Brochure
- Carrier 189BNV024B00, 189BNV025000, 189BNV036000, 189BNV048000, 189BNV060000 Data Sheet
- Carrier 189BNV024B00, 189BNV025000, 189BNV036000, 189BNV048000, 189BNV060000 Installation Instructions
- Carrier 189BNV024B00, 189BNV025000, 189BNV036000, 189BNV048000, 189BNV060000 Manual
Product Details
The Evolution™ V air conditioner offers high-efficiency variable speed performance in a remarkably small cabinet and provides up to 19 SEER cooling efficiency. The variable speed inverter capacity control delivers up to 5 stages of operation for exceptional load matching, dehumidification and zoning performance. This product has been designed and manufactured to provide flexible system matching and work with a wide variety of indoor units and controls.
NOTE: Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
STANDARD FEATURES
Energy Efficiency
- Up to 19 SEER / Up to 13 EER
- Microtube Technology™ refrigeration system
Sound
- Sound level as low as 56 dBA in low speed
- Soft start and smooth ramp to operating speeds
Comfort
- Variable speed compressor operates at 5 stages with capacity range from as wide as 25-100%
- Air cooled Inverter variable speed drive
-System requires Evolution® Connex™ Control with compatible software for 5 stage operation
-Ratings provided with 2-stage thermostats and suitable non-communicating indoor products for 2-stage operation.
Reliability
- Puron® refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
- Front-seating service valves
- Inverter control drives compressor and fan motor
- No control module attached to fan motor
- Evolution intelligence monitors critical system parameters
- Pressure equalizer valve for easy compressor starting
- High pressure switch
- Suction pressure transducer
- Compressor discharge temperature sensor
- Suction temperature sensor
- Filter drier (field installed)
- Internal crankcase heater standard
Flexibility and installation
- 2 control wires to outdoor unit in complete Evolution® system and Connex™ Control
- Smaller and lighter than 2-stage units
- Minimum and Maximum adjustments with Evolution® Connex™ Control
- Compatible with non-communicating thermostats
Durability
DuraGuard™ protection package:
- Solid, Durable sheet metal construction
- Steel louver coil guard
- Baked-on, complete outer coverage, powder paint
Applications
- Line sets up to 100 ft. (30.5 m) equivalent length
- No long-line accessories required.
Attributes
| Brochure | 9/1/d/5/91d545de5f5d8c6e2a266212aee43ab6d4a2a1d8_4224960_brochure.pdf |
Specifications
| SKU | CS4224960 |
|---|---|
| MPN | 189BNV048000 |
