Carrier 24VNA660A003

SKU: CS4225220MPN: 24VNA660A003

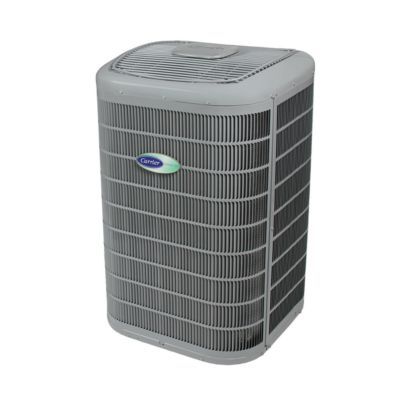

Carrier® Infinity® - 5 Ton 26 SEER Residential Variable Speed Air Conditioner Condensing Unit

Product Details

24VNA660A003

24 \= AC

V \= VS AC

N \=Infinity Series

A \= Puron

6 \= SEER

60 \= 5 Ton Cooling Capacity

A \= Standard

0 \= Not Defined

0 \= Not Defined

3 \= 208/230-1 Voltage

Carrier’s 24VNA6 with Greenspeed™ Intelligence is a variable speed cooling product providing up to 26 SEER cooling efficiency. Lower speed operation, when needed in cooling, for enhanced comfort and dehumidification.

This product has been designed and manufactured to meet Energy Star® criteria for energy efficiency when matched with appropriate coil components. Refer to the combination ratings in this Product Data for system combinations that meet Energy Star guidlines.

NOTE: Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.

Features:

Energy Efficiency

  • Up to 26 SEER, 16.5 EER
  • Microtube Technology™ refrigeration system
  • Indoor air quality accessories available

Sound

  • Sound level as low as 51 dBA in low speed .

Comfort

  • Variable speed compressor with capacity range from 25-100%
  • Air cooled Inverter variable speed drive
  • – System requires Infinity Control with Greenspeed capability with version 3.0 software
  • – Energy Tracking capability with the Infinity Control with latest software version (Energy Tracking has the ability to monitor and estimate the energy consumption of your Infinity system.)

Reliability

  • Non-ozone depleting Puron® refrigerant
  • Front-seating service valves
  • Greenspeed Intelligence actively monitors critical system parameters
  • High pressure switch
  • Discharge and suction pressure transducer
  • TXV for cooling
  • Filter drier (field installed)
  • Internal crankcase heater standard

Flexibility and installation:

  • 2 control wires to outdoor unit
  • Minimum and maximum airflow adjustments

Durability

WeatherArmor Ultra™ protection package:

  • Solid, Durable sheet metal construction
  • Steel louver coil guard
  • Baked-on, complete outer coverage, powder paint

Applications

  • Long-line - up to 250 feet (76.2 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser.

Attributes

Brochure 2/4/a/6/24a69af5966ccbf921d883b4c65dc85e4595ad1f_4225220_brochure.pdf

Specifications

SKUCS4225220
MPN24VNA660A003
