All ProductsTurck

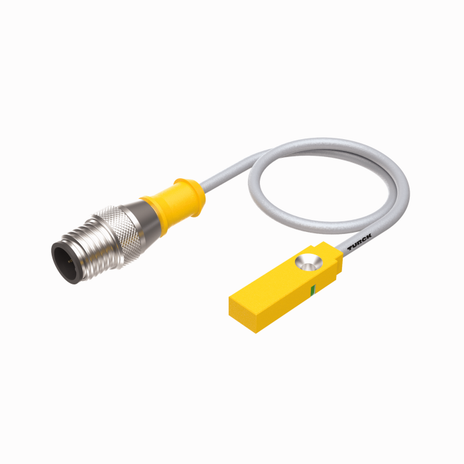

Turck BI2-Q5.5-AG6X-0.2-RS4.23T

SKU: CS4209389MPN: BI2-Q5.5-AG6X-0.2-RS4.23TAlternate Part #: 1613171

1613171 - FERRITE, RECT., DC, PIGTAIL M1

Turck BI2-Q5.5-AG6X-0.2-RS4.22T, BI2-Q5.5-AG6X-0.2-RS4.23T, BI2-Q5.5-AN6X-0.2-RS4T, BI2-Q5.5-AP6X-0.2-RS4T, BI2-Q5.5-AP6X-0.2-RS4T/S1589, BI2-Q5.5-AP6X-0.2-RS4T/S34, BI2-Q5.5-AP6X-0.3-RS4T, BI2-Q5.5-AP6X-0.3-RS4T/S34, BI2-Q5.5-AP6X-0.4-RS4T/S34/S1764, BI2-Q5.5-AP6X-0.5-RS4T/S1764, NI3.5-Q5.5-AN6X-0.2-RS4T, NI3.5-Q5.5-AN6X-0.3-RS4T, NI3.5-Q5.5-AP6X-0.2-RS4T, NI3.5-Q5.5-AP6X-0.2-RS4T/S1589, NI3.5-Q5.5-AP6X-0.2-RS4T/S1764
Turck BI2-Q5.5-AG6X-0.2-RS4.22T, BI2-Q5.5-AG6X-0.2-RS4.23T, BI2-Q5.5-AN6X-0.2-RS4T, BI2-Q5.5-AP6X-0.2-RS4T, BI2-Q5.5-AP6X-0.2-RS4T/S1589, BI2-Q5.5-AP6X-0.2-RS4T/S34, BI2-Q5.5-AP6X-0.3-RS4T, BI2-Q5.5-AP6X-0.3-RS4T/S34, BI2-Q5.5-AP6X-0.4-RS4T/S34/S1764, BI2-Q5.5-AP6X-0.5-RS4T/S1764, NI3.5-Q5.5-AN6X-0.2-RS4T, NI3.5-Q5.5-AN6X-0.3-RS4T, NI3.5-Q5.5-AP6X-0.2-RS4T, NI3.5-Q5.5-AP6X-0.2-RS4T/S1589, NI3.5-Q5.5-AP6X-0.2-RS4T/S1764
Turck BI2-Q5.5-AG6X-0.2-RS4.22T, BI2-Q5.5-AG6X-0.2-RS4.23T, BI2-Q5.5-AN6X-0.2-RS4T, BI2-Q5.5-AP6X-0.2-RS4T, BI2-Q5.5-AP6X-0.2-RS4T/S1589, BI2-Q5.5-AP6X-0.2-RS4T/S34, BI2-Q5.5-AP6X-0.3-RS4T, BI2-Q5.5-AP6X-0.3-RS4T/S34, BI2-Q5.5-AP6X-0.4-RS4T/S34/S1764, BI2-Q5.5-AP6X-0.5-RS4T/S1764, NI3.5-Q5.5-AN6X-0.2-RS4T, NI3.5-Q5.5-AN6X-0.3-RS4T, NI3.5-Q5.5-AP6X-0.2-RS4T, NI3.5-Q5.5-AP6X-0.2-RS4T/S1589, NI3.5-Q5.5-AP6X-0.2-RS4T/S1764
Turck BI2-Q5.5-AG6X-0.2-RS4.22T, BI2-Q5.5-AG6X-0.2-RS4.23T, BI2-Q5.5-AN6X-0.2-RS4T, BI2-Q5.5-AP6X-0.2-RS4T, BI2-Q5.5-AP6X-0.2-RS4T/S1589, BI2-Q5.5-AP6X-0.2-RS4T/S34, BI2-Q5.5-AP6X-0.3-RS4T, BI2-Q5.5-AP6X-0.3-RS4T/S34, BI2-Q5.5-AP6X-0.4-RS4T/S34/S1764, BI2-Q5.5-AP6X-0.5-RS4T/S1764, NI3.5-Q5.5-AN6X-0.2-RS4T, NI3.5-Q5.5-AN6X-0.3-RS4T, NI3.5-Q5.5-AP6X-0.2-RS4T, NI3.5-Q5.5-AP6X-0.2-RS4T/S1589, NI3.5-Q5.5-AP6X-0.2-RS4T/S1764
$120.96
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Rectangular, height 5.5 mm
  • Active face on top
  • Plastic, PP
  • DC 2-wire, 10…30 VDC
  • NO contact
  • Cable with connector

Attributes

Ambient Temperature -25…+70 °C

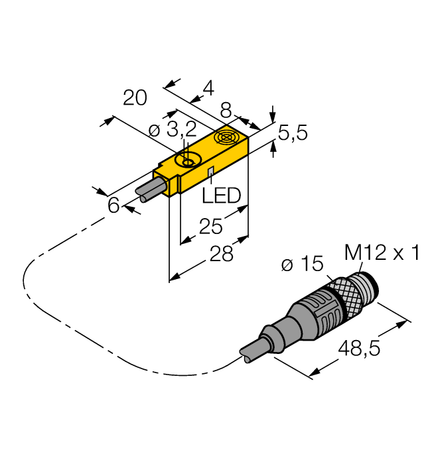

Construction Size 28 x 8 x 5.5 mm, Q5.5
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M12 × 1
Housing Material Plastic, PP-GF20
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 2 mm
Switching Frequency 1.0 kHz

Specifications

SKUCS4209389
MPNBI2-Q5.5-AG6X-0.2-RS4.23T
Alternate Part #1613171
