All ProductsTurck

Turck BI2-Q5.5-RN6X-0.2-PSG3M

SKU: CS3788921MPN: BI2-Q5.5-RN6X-0.2-PSG3MAlternate Part #: 1613185

1613185 - FERRITE, RECT., DC, PIGTAIL M8

Turck BI2-Q5.5-AN6X-0.2-PSG3M, BI2-Q5.5-AP6X-0.2-PSG3M, BI2-Q5.5-AP6X-0.2-PSG3M/S34, BI2-Q5.5-AP6X-0.3-PSG3M, BI2-Q5.5-AP6X-0.5-PSG3M, BI2-Q5.5-AP6X-0.5-PSG3M/S1764, BI2-Q5.5-RN6X-0.2-PSG3M, BI2-Q5.5-RP6X-0.2-PSG3M, NI3.5-Q5.5-AN6X-0.2-PSG3M, NI3.5-Q5.5-AN6X-0.5-PSG3M, NI3.5-Q5.5-AP6X-0.2-PSG3M, NI3.5-Q5.5-AP6X-0.3-PSG3M, NI3.5-Q5.5-AP6X-0.5-PSG3M, NI3.5-Q5.5-RP6X-0.2-PSG3M
$120.96
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Rectangular, height 5.5 mm
  • Active face on top
  • Plastic, PP
  • DC 3-wire, 10…30 V DC
  • NC contact, NPN output
  • M8 × 1 connector

Attributes

Ambient Temperature -25…+70 °C

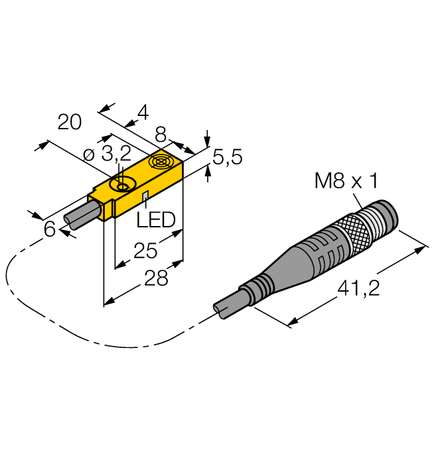

Construction Size 28 x 8 x 5.5 mm, Q5.5
Design Rectangular
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M8 × 1
Housing Material Plastic, PP-GF20
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NC contact, NPN
Protection Class IP67
Rated Switching Distance 2 mm
Switching Frequency 2.0 kHz

Specifications

SKUCS3788921
MPNBI2-Q5.5-RN6X-0.2-PSG3M
Alternate Part #1613185
