Dwyer 478A-1
SKU: CS4124555MPN: 478A-1Alternate Part #: 100392-01
478A-1 DGTL MANO
$243.78
UnitAvailable on backorder
Product Details

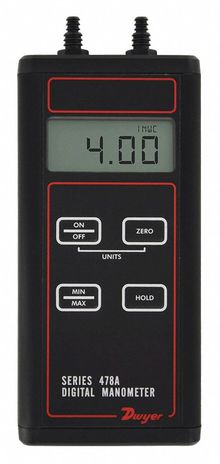

Digital differential manometer, range -60 to 60” w.c.
Attributes
| Accuracy | ±1.5% FS @ 72°F (22.2°C). Includes linearity and repeatability. |
| Commodity Code | 0217 |
| Compensated Temperature Limits | 32 to 104°F (0 to 40°C). |
| Compliance | CE. |
| Display | 4 digit LCD (.425”H x .234”W digits). |
| Power Requirement | 9 V alkaline battery, installed non-functional, user replaceable. |
| Pressure Hysteresis | ±0.1% of FS. |
| Pressure Limit | 5 psig (.74 bar). |
| Process Connection | For use with 3/16” or ¼” I.D. tubing. |
| Service | Air and compatible gases. |
| Thermal Effect | 0.05% FS/°F. |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS4124555 |
|---|---|
| MPN | 478A-1 |
| Alternate Part # | 100392-01 |
