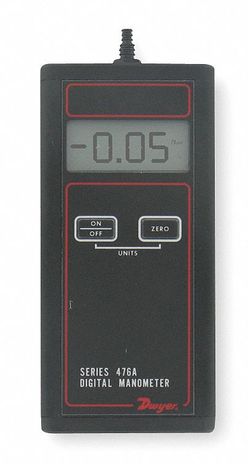

Dwyer 476A-0
SKU: CS2389637MPN: 476A-0Alternate Part #: 100390-00
476A DGTL MANO
$272.63
UnitAvailable on backorder
Product Details
Digital manometer, range -20 to 20” w.c.
Attributes
| Accuracy | ±1.5% FS @ 72°F (22.2°C). Includes linearity and repeatability. |
| Commodity Code | 0216 |
| Compensated Temperature Limits | 32 to 104°F (0 to 40°C). |
| Compliance | CE. |
| Display | 4 digit LCD (.425”H x .234”W digits). |
| Power Requirement | 9 V alkaline battery, installed non-functional, user replaceable. |
| Pressure Hysteresis | ±0.1% of FS. |
| Pressure Limit | 5 psig (.74 bar). |
| Process Connection | For use with 3/16” or ¼” I.D. tubing. |
| Service | Air and compatible gases. |
| Thermal Effect | 0.05% FS/°F. |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS2389637 |
|---|---|
| MPN | 476A-0 |
| Alternate Part # | 100390-00 |
