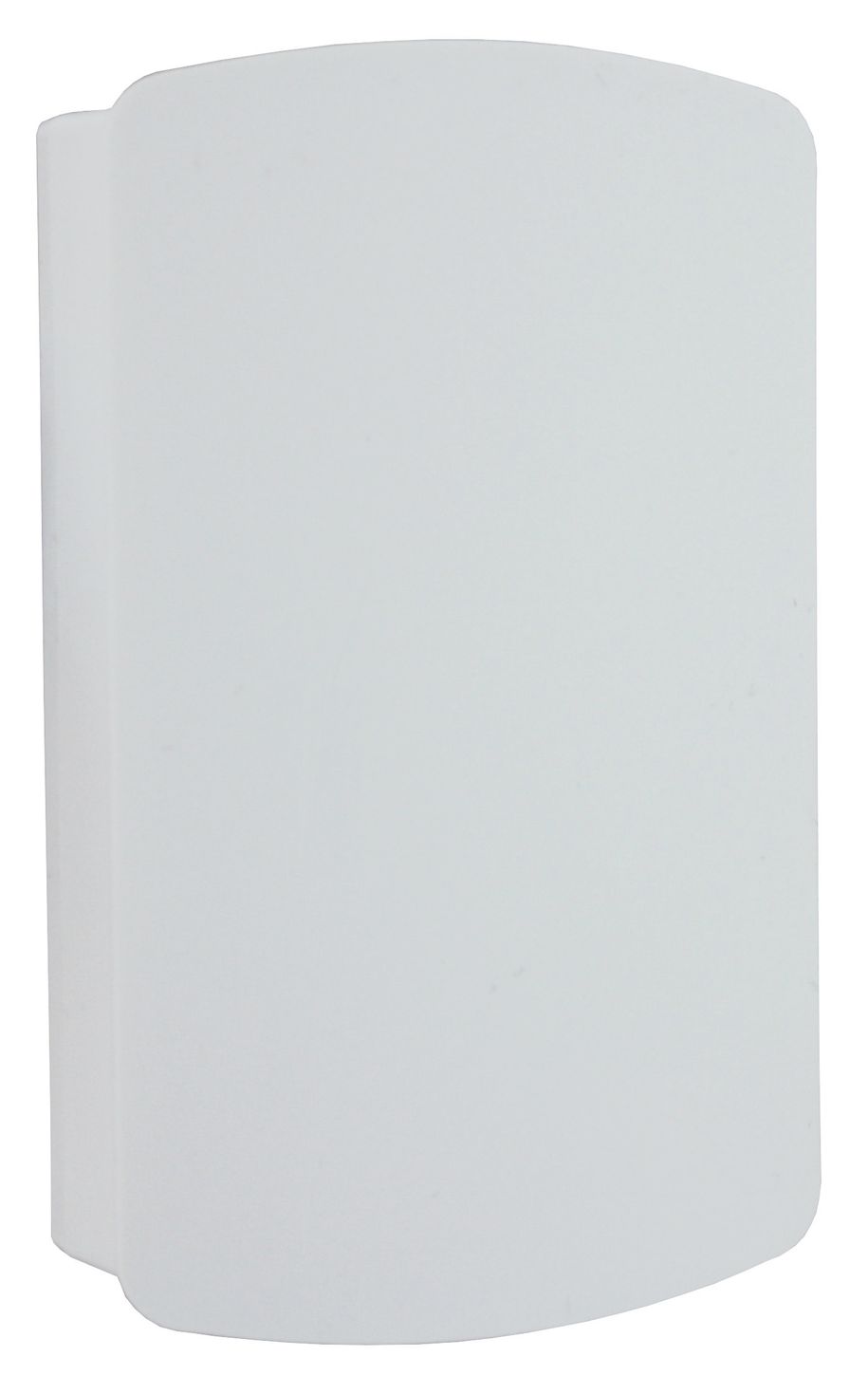

Dwyer RHPLC-2N11

Name: Dwyer RHPLC-2N11
Brand: Dwyer
SKU: CS4120300
Price: 145.71 USD
Availability: OutOfStock

SKU: CS4120300MPN: RHPLC-2N11Alternate Part #: 101919-00

RHPLC-2N11 2%, 4-20MA HMD/TEMP

$145.71

Unit

Available on backorder

Quantity

remove

add

Product Details

North American wall mount humidity/temp transmitter, 2% accuracy, 4-20MA humidity and temperature output

Accuracy Current Volt Temp Output	±0.9°F @ 77°F (±0.5°C @ 25°C).
Accuracy Rtd Temp Sensor	DIN Class B; ±0.3°C @ 0°C (±0.54°F @ 77°F).
Commodity Code	0309
Compliance	CE.
Drift	<0.25% RH/year.
Electrical Connection	Screw terminal block.
Enclosure Material	Polycarbonate.
Passive Thermistor Temp Sensor Accuracy	±0.36ºF @ 77°F (±0.2°C @ 25°C).
Power Requirement	10 to 35 VDC for 4 to 20 mA or 0 to 5 VDC output; 15 to 35 VDC for 0 to 10 VDC output; 10 to 29 VAC for 0 to 5 VDC output; 15 to 29 VAC for 0 to 10 VDC output.
Relative Humidity Range	0-100% RH.
Response Time	8 s (Ï_x0080_63).
Rh Accuracy	±2% 10 to 90% RH @ 25°C for 2% accuracy units; ±3% 20 to 80% RH @ 25°C for 3% accuracy units.
Rh Hysteresis	±0.8%.
Rh Repeatability	±0.1% typical.
Sensor	Capacitive polymer.
Temperature Output Range	-40 to 140°F (-40 to 60°C).
