Dwyer ULT-22

Name: Dwyer ULT-22
Brand: Dwyer
SKU: CS4121711
Price: 2571.34 USD
Availability: OutOfStock

SKU: CS4121711MPN: ULT-22Alternate Part #: 102986-03

ULT-22 2 BSPT 10M

$2,571.34

Unit

Available on backorder

Quantity

remove

add

Product Details

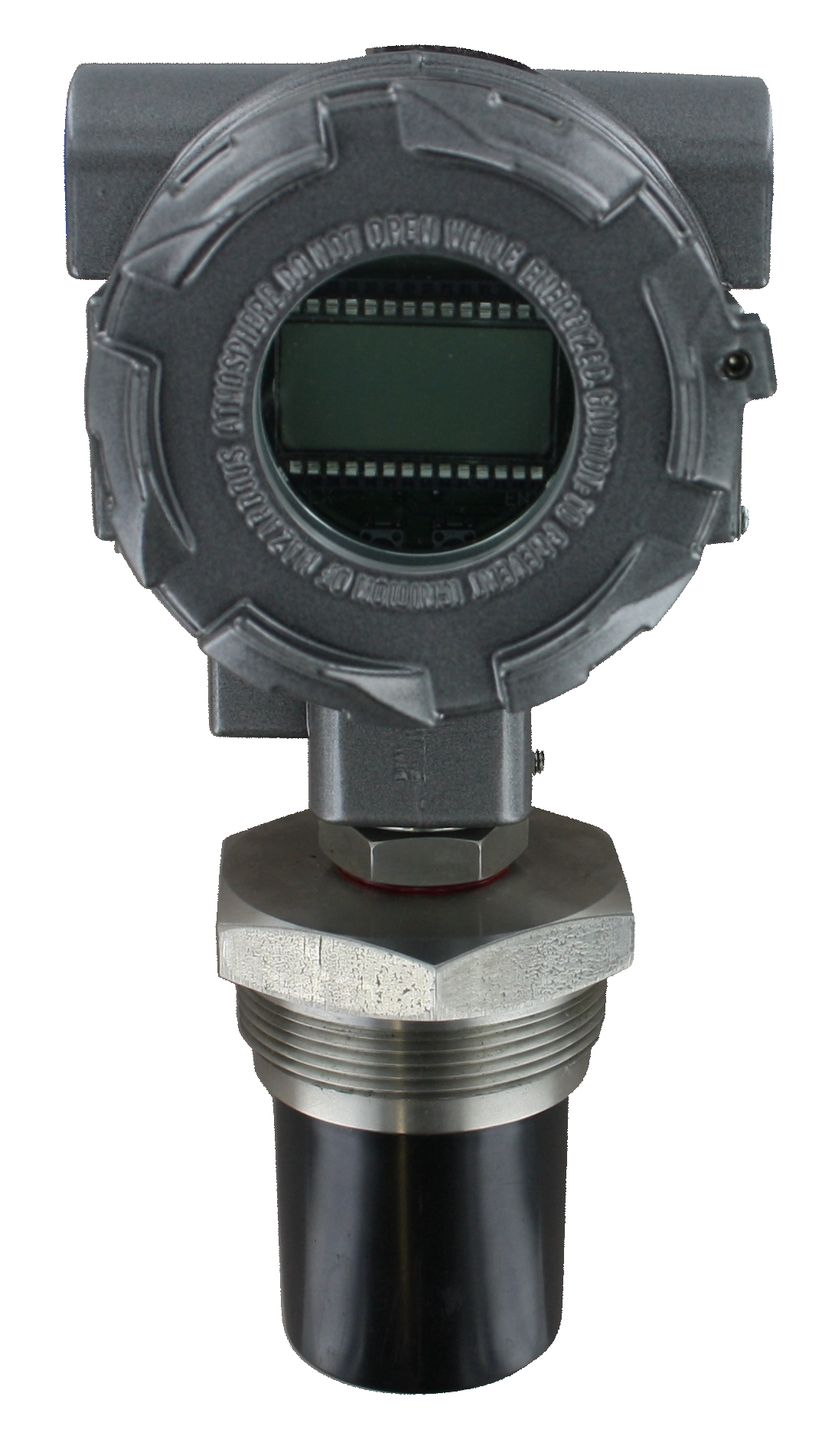

Ultrasonic level transmitter, 10 m (32.8’) range, explosion-proof, 2” BSPT male process connection, M20 conduit connection.

Accuracy	±0.2% FS.
Blind Zone	Under 8” (20 cm).
Commodity Code	M204
Compliance	CE, FM.
Conduit Connection	½” NPT female (two) or optional M20.
Display	6 character LCD.
Electrical Connection	Screw terminal.
Electrical Connections	Screw terminal.
Enclosure Rating	Weather-proof meets NEMA 4X (IP66), explosion-proof rated Class I, Div. 1, Groups B, C, D; Class II/III, Div. 1, Groups E, F, G.
Failsafe	On lost echo after 30 seconds, user selectable to 4, 20, 21, 22 mA or last signal.
Max Loop Resistance	250 Ω at 24 VDC.
Memory	Non-volatile.
Mounting Orientation	Vertical.
Output Signal	4 to 20 mA or 20 to 4 mA (2 wire).
Power Requirement	18 to 28 VDC (2 wire).
Pressure Limit	30 psi (2 bar) up to 25°C (77°C). Above 25°C (77°F), rating decreases 1.667 psi per 1°C increase. See Catalog page.
Process Connection	2” NPT male or optional BSPT.
Programming	4 button.
Range	24.6’ (7.5 m), 32.8’ (10 m).
Ranges	24.6’ (7.5 m), 32.8’ (10 m).
Resolution	0.079” (2 mm)
Service	Compatible fluids. Not for use with powder and bulk solids.
Temperature Compensation	-40 to 140°F (-40 to 60°C).
Units	In, cm, ft, m, percent.
Wetted Material	Sensor: PVDF; Process Connection: 303 SS; O-ring: fluoroelastomer.
