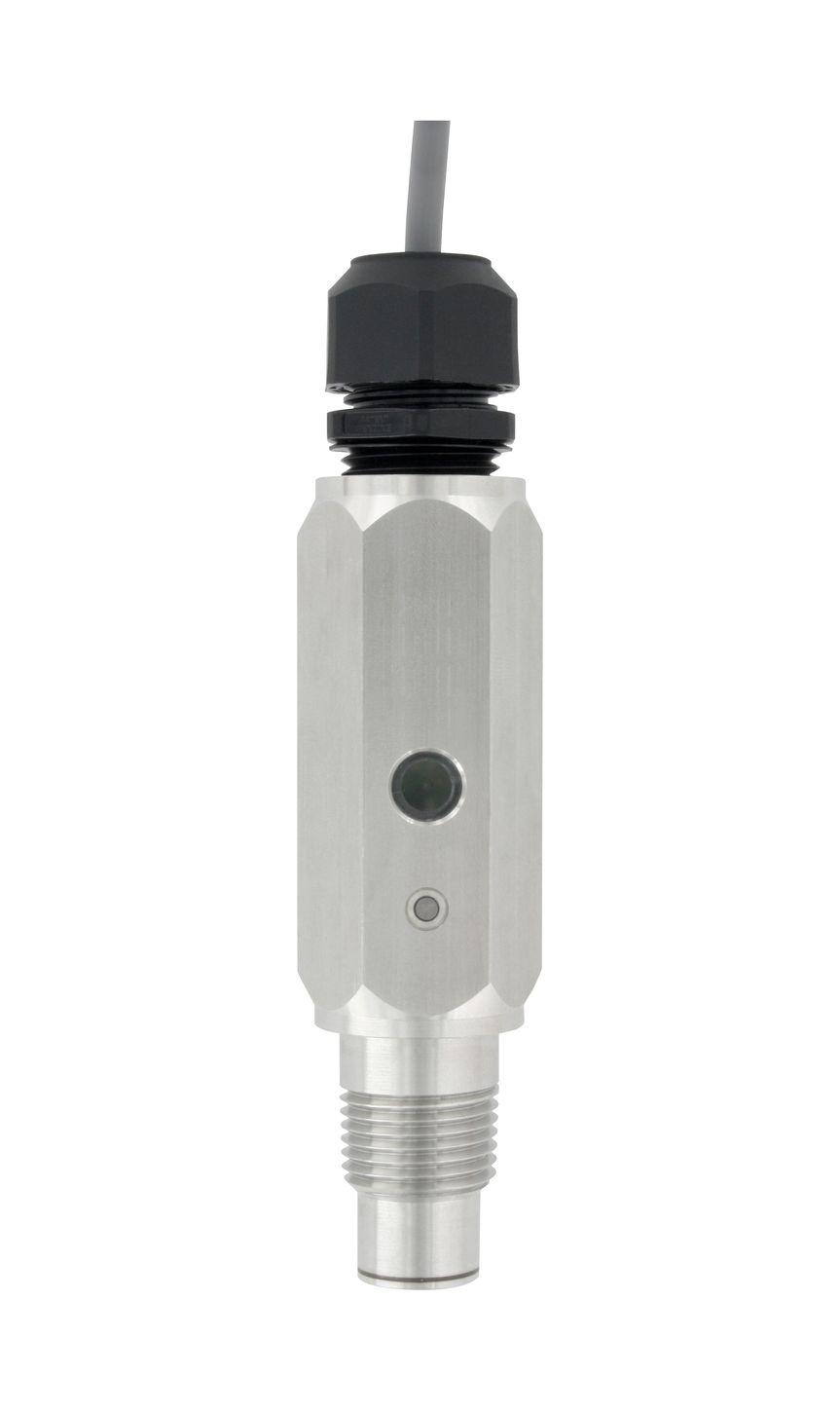

Dwyer TDFS2-2-P-06-BSPT

Name: Dwyer TDFS2-2-P-06-BSPT
Brand: Dwyer
SKU: CS4121194
Price: 663.93 USD
Availability: OutOfStock

SKU: CS4121194MPN: TDFS2-2-P-06-BSPTAlternate Part #: 100791-03

TDFS2-2-P-06-BSPT

$663.93

Unit

Available on backorder

Quantity

remove

add

Product Details

Thermal dispersion flow switch for pipe size 2 to 10” (50 to 250 mm), 316SS, ½” BSPT process connection, 6’ of cable with conduit connection. (Extended length)

Attributes

Commodity Code	8219
Compliance	CE.
Current Consumption	Average: 93 mA; Peak: 300 mA.
Electrical Connection	½’ NPT female or cable gland with 4 conductor 22 AWG 6’ (1.83 m) long (model selectable).
Enclosure Rating	NEMA 4X (IP65).
Housing Material	316 SS, 416 SS, polycarbonate, neoprene, and acrylated urethane.
Housing Materials	316 SS, 416 SS, polycarbonate, neoprene, and acrylated urethane.
Input Power And Protection	0.5A fuse (resettable) reverse polarity protected.
Pipe Range	½ to 1-½” (15 to 40 mm) or 2 to 10” (50 to 250 mm) (model selectable).
Power Requirement	9 to 24 VDC.
Pressure Limit	300 psig (20.67 bar).
Process Connection	½” NPT or BSPT male (model selectable).
Repeatability	0.07 ft/s (0.02 m/s) +3% of setpoint.
Response Time	Approx. 8 s.
Service	Compatible water-based fluids.
Set Point Range	0.5 to 10 ft/s (0.15 to 3.0 m/s).
Switch Type	1 NO NPN, 1 NC NPN.
Switched Output Protection	0.5A fuse (resettable) reverse polarity protected.
Switching Current	400 mA, de-rate 5 mA/°C above 23°C.
Typical Deadband	0.1 ft/s (0.03 m/s) +15% of setpoint.
Wetted Material	316SS.
