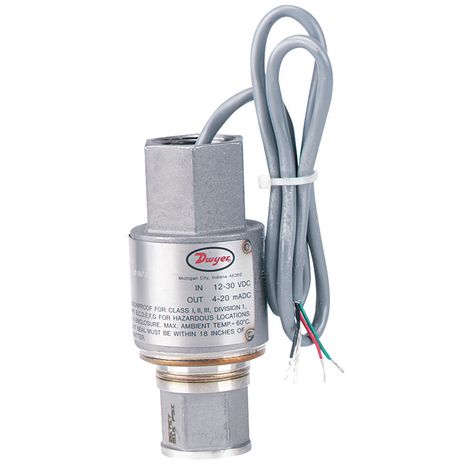

Dwyer 636-2
SKU: CS4125045MPN: 636-2Alternate Part #: 102316-03
636-2 PRESS XMTR 0-100 PSI
$1,341.42
UnitAvailable on backorder
Product Details
Fixed range pressure transmitter, range 0-100 psi (0-7 bar).
Attributes
| Accuracy | ±0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation. |
| Commodity Code | R6BD |
| Compensated Temperature Range | -20 to 180°F (-29 to 82°C). |
| Compliance | CSA, FM. FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, & D, Class II, Groups E, F, & G, Class III. |
| Electrical Connection | ¾” female NPT 24” (61 cm), 22 AWG. |
| Enclosure Rating | NEMA 4 (IP56). |
| Fill Fluid | DC 200 Silicone (standard). |
| Loop Resistance | 900 Ω max. @ 30 V. |
| Output Signal | 4 to 20 mA DC, limited to 30 mA DC (636), 1 to 5 VDC (636LP). |
| Power Requirement | 12 to 30 VDC (636), 8 to 14 VDC (636LP), reverse polarity protection. |
| Pressure Limit | 300% upper range limit. |
| Process Connection | ½” female NPT. |
| Service | Liquid, gas or vapor. |
| Stability | ±0.5% of upper range limit for six months. |
| Thermal Effect Includes Zero And Span | Between -20 and 180°F (-29 and 82°C). ±2.0% per 50°F (28°C). |
| Wetted Material | 316 L SS. |
| Zero And Span Adjustment | Null: 4.0 mA ±2% span (636), 1 VDC ±1% span (636LP); Span: 16.0 mA ±1% span (636), 4 VDC ±1% span (636LP). |
| Zero And Span Adjustments | Null: 4.0 mA ±2% span (636), 1 VDC ±1% span (636LP); Span: 16.0 mA ±1% span (636), 4 VDC ±1% span (636LP). |
Specifications
| SKU | CS4125045 |
|---|---|
| MPN | 636-2 |
| Alternate Part # | 102316-03 |
