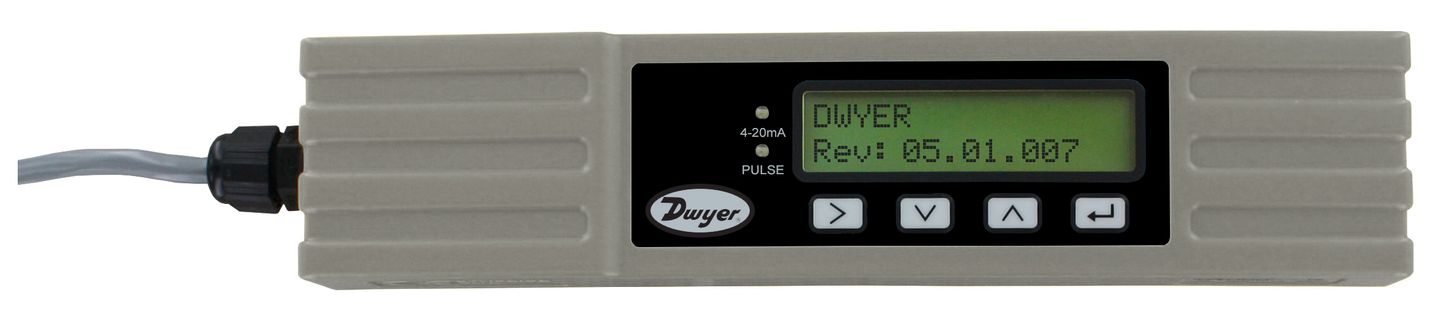

Dwyer UFM2-14

SKU: CS4121688MPN: UFM2-14Alternate Part #: 128103-00

UFM2-14 ULTSNIC FLWMTR ¾-4”

Dwyer UFM2-14
$4,190.45
Unit
Available on backorder
remove
add

Product Details

Compact ultrasonic flowmeter, pulse and 4-20 mA outputs, ¾ to 4” (25 to 115 mm) pipe

Attributes

Accuracy ±3% of flow reading for >0.98 ft/s (>0.3 m/s).
Agency Approval CE.
Agency Approvals CE.
Applicable Pipe Lining None.
Applicable Pipe Material Steel, copper, or plastic.
Commodity Code R2GT
Display Backlit: 3.27” H x 0.74” W (83.1 mm x 18.8 mm), 2 line x 16 characters.
Electrical Connection 16.4’ (5 m) cable.
Electrical Connections 16.4’ (5 m) cable.
Enclosure Material Plastic polycarbonate.
Enclosure Rating IP54.
Output Analog: 1 opto-isolated: 4-20 mA; Error current: 3.5 mA; Load resistance: 620 Ω max; Pulse: 1 optoisolated MOSFET relay, 500 mA max, 166 pps max, 200 Hz max.
Pipe Outside Diameter ¾ to 7” (25 to 180 mm). Pipe size is dependent on pipe material and internal diameter.
Pipe Wall Thickness 0.02 to 0.39” (0.5 to 10 mm).
Power Consumption 7 W max.
Power Requirement 12-24 VDC/VAC.
Range 0.33 to 32.8 ft/s (0.1 to 10 m/s).
Repeatability ±0.15% of measured value.
Response Time <1 s.
Service Clean water with <3% by volume of particulate content.

Specifications

SKUCS4121688
MPNUFM2-14
Alternate Part #128103-00
