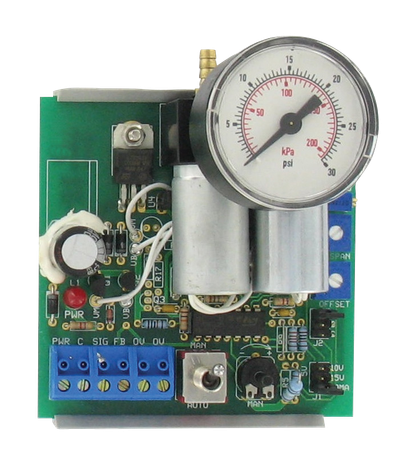

Dwyer EPTA-S0

Name: Dwyer EPTA-S0
Brand: Dwyer
SKU: CS4118031
Availability: OutOfStock

SKU: CS4118031MPN: EPTA-S0Alternate Part #: 124602-00

EPTA-S0 24VAC/DC XDUCER SNAP

Product Details

Electro-pneumatic transducer, standard snap-track mount.

Accuracy	±1.0% full scale @ room temperature; ±2.0% full scale @ 32 to 120°F (0 to 48.8°C).
Air Consumption	0 scim normal operation, Fail-Safe model vents to 0 psi on power loss.
Air Flow	750 scim.
Air Supply	25 psig (172 kPa) maximum.
Commodity Code	RPDD
Electrical Connection	Plug-in block terminal type with 5 mm pin spacing.
Electrical Connections	Plug-in block terminal type with 5 mm pin spacing.
Feedback Output	0 to 5 VDC.
Input Impedance	Current: 250 ohms; Voltage: Infinite.
Input Signal	DC Current (4-20 mA) or DC Voltage (0-5/0-10/0-15).
Operating Humidity Range	5 to 95%, non-condensing.
Output Signal	Jumper selectable 0-10 psig (0-69 kPa), 0-15 psig (0-103 kPa), or 0-20 psig (0-138 kPa).
Pressure Connection	¼” O.D. (polyethylene tubing optimum).
Pressure Connections	¼” O.D. (polyethylene tubing optimum).
Service	Clean dry air or any inert gas.
Supply Current	180 mA maximum, 200 mA maximum on Fail-Safe model.
Supply Voltage	24 VDC (+10%/-5%) or 24 VAC (±10%) 50/60 Hz.
Wire Size	Up to one 14 AWG per terminal.
