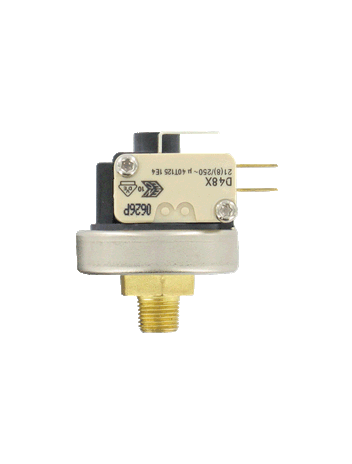

Dwyer A9-6
SKU: CS4116154MPN: A9-6Alternate Part #: 124509-05
A9-6 PR SW 58-130.5 PSI ⅛ NP
$48.11
UnitAvailable on backorder
Product Details
Pressure switch, range 58-130.5 psig (5.0-9.0 bar), deadband 8.7 ±2.9 psig (0.6 ±0.2 bar), max. pressure 145.0 psig (10.0 bar), temperature limit 257°F (125°C), stainless steel diaphragm.
Attributes
| Commodity Code | R2AH |
| Deadband | See Ordering page. |
| Electrical Connection | ¼” (6.35 mm) male quick connect. |
| Electrical Connections | ¼” (6.35 mm) male quick connect. |
| Electrical Rating | 21A @ 125/250 VAC. |
| Electrical Ratings | 21A @ 125/250 VAC. |
| Pressure Limit | See Ordering page. |
| Process Connection | ⅛” male NPT. |
| Repeatability | ±5%. |
| Service | Non-hazardous gas, liquid, or steam. |
| Switch Type | SPDT. |
| Wetted Material | Connection: Copper, Diaphragm: Silicone or Stainless Steel. |
Specifications
| SKU | CS4116154 |
|---|---|
| MPN | A9-6 |
| Alternate Part # | 124509-05 |
