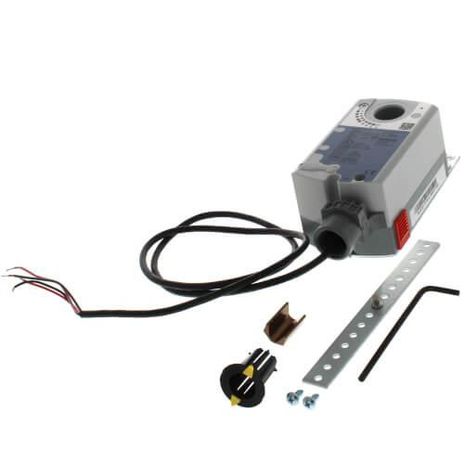

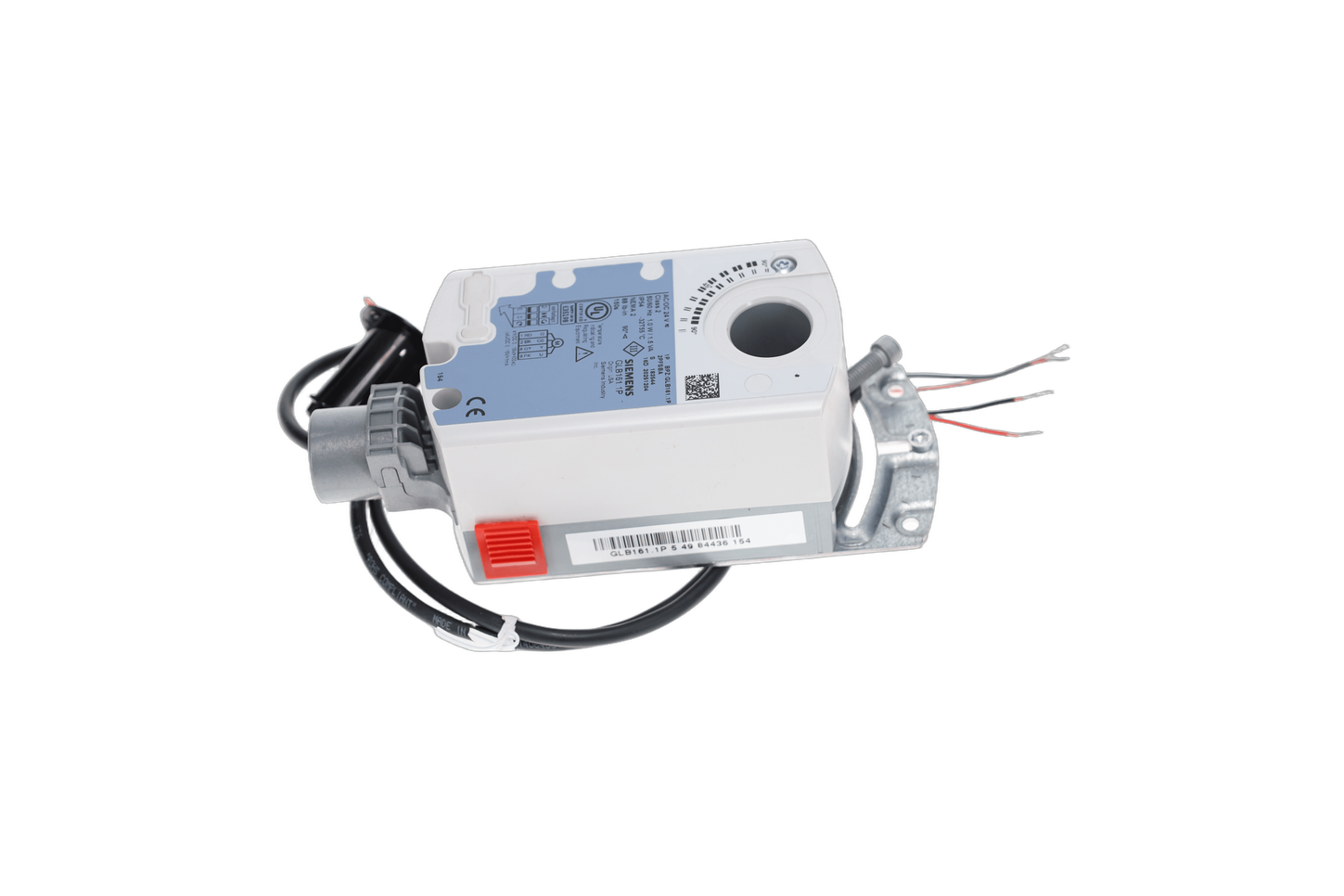

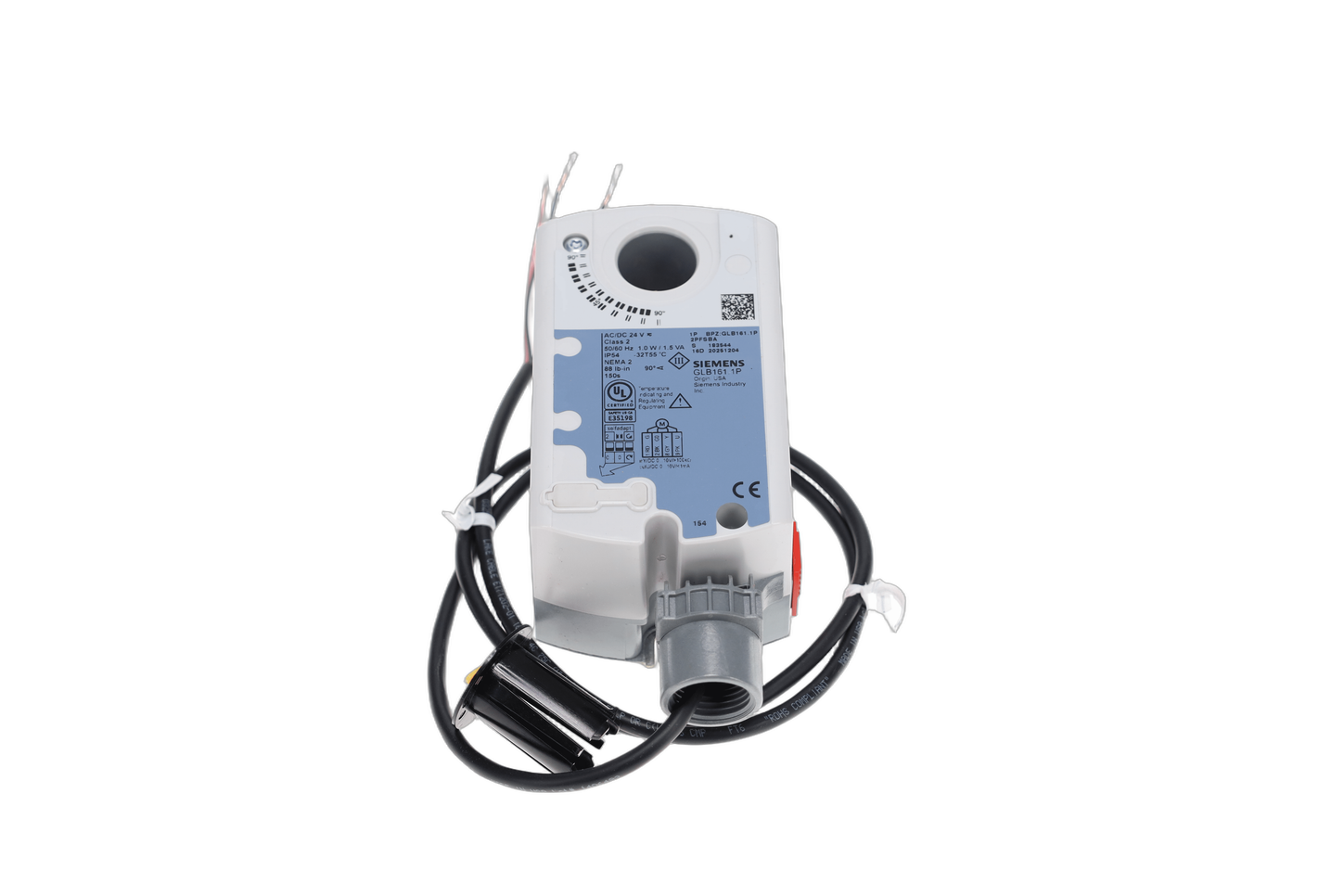

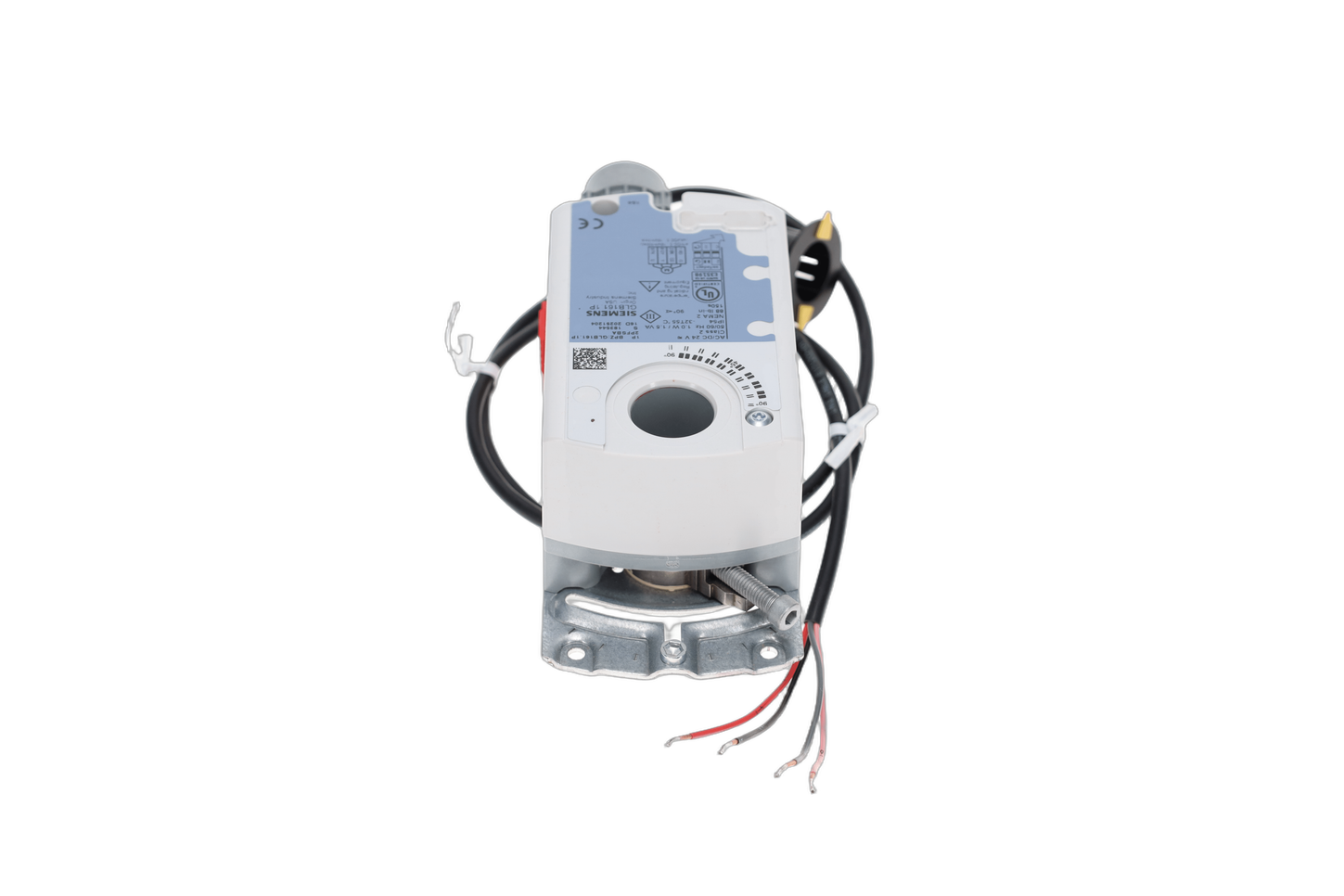

Siemens GLB161.1P
SKU: CS411419MPN: GLB161.1PUPC/EAN: 804766015977
Non-spring Return 88 lb-in (10Nm), 24Vac, 0-10 Vdc Control, 125sec Run, Plenum
$187.85
Unit9 in stock
Product Details
OpenAir™ GLB Series Electric Damper Actuator, rotary, non-spring return, 88 lb-in (10 Nm), 24 Vac, 0 to 10 Vdc control, 90 sec run time, plenum rated
Attributes
| Actuation Style | Rotary |
| Actuator Type | Non-spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 0…10Vdc / 2…10Vdc |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA Type 2, IP54 according to EN 60 529 |
| Operating Voltage | 19.2…28.8 V24 V#AC/DC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | Yes |
| Positioning Time | 50 Hz:150 s;60 Hz:125 s |
| Power Consumption | 3.3 VA |
| Supply Voltage | 24 VAC |
| Torque | 88 lb-in |
Specifications
| SKU | CS411419 |
|---|---|
| MPN | GLB161.1P |
| UPC/EAN | 804766015977 |
