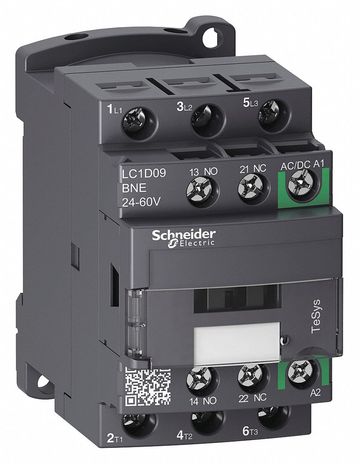

Schneider Electric LC1D09BNE

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, \<\=440V, 9A, 24...60V AC/DC coil, screw clamp terminals

IEC Magnetic Contactor Full Load Amps-Inductive 9 A Full Load Amps-Resistive 20 A Number of Poles 3 Coil Volts 24 to 60 V AC/DC Reversing No HP @ 1 Phase - 120V ⅓ hp HP @ 1 Phase - 240V 1 hp HP @ 3 Phase - 208V 2 hp HP @ 3 Phase - 240V 2 hp HP @ 3 Phase - 480V 5 hp HP @ 3 Phase - 575V 7 ½ hp Aux. Contact Configuration 1NO/1NC Enclosure NEMA Rating No Enclosure Hz 50/60 Height 3.03 in Width 1.77 in Depth 3.38 in Standards CSA C22.2 EN 60947-4-1 EN 60947-5-1 UL508
