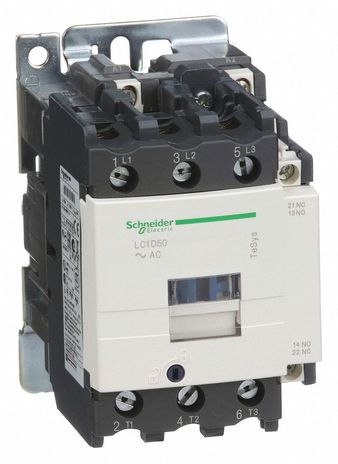

Schneider Electric LC1D50G7

Name: Schneider Electric LC1D50G7
Brand: Schneider Electric
SKU: CS143506
Price: 465.92 USD
Availability: InStock

SKU: CS143506MPN: LC1D50G7Alternate Part #: SQD-LC1D50G7

Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/\<\=440V 50A,120V AC 50/60Hz coil, screw clamp terminals

$465.92

Unit

2 Units Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

TeSys D Contactor- Number of Poles: 3-Poles- Pole Contact Composition: 3 NO- Rated Operational Current: 50A- Control Circuit Voltage: 120V AC 50/60 Hz- Non-Reversing

Attributes

Ambient Air Temperature For Operation	-5-60 °C
Ambient Air Temperature For Operation 1	-5-60 °C
Ambient Air Temperature For Storage	-60-80 °C
Auxiliary Contact Composition	1 NO + 1 NC
Coil Technology	without built-in bidirectional peak limiting diode suppressor
Contactor Application	motor control# #resistive load
Device Short Name	LC1D
Mechanical Durability	6000000 cycles
Mounting Support	plate# #rail
Overvoltage Category	III
Pole Contact Composition	3 NO
Poles Description	3P
Product Certifications	GOST# #LROS (pending)# #UL# #CCC# #RINA# #CSA# #BV# #GL# #DNV# #UKCA
Product Or Component Type	contactor
Protective Cover	with
Range	TeSys
Range Of Product	TeSys D# #TeSys Deca
Standards	UL 508# #EN 60947-4-1# #EN 60947-5-1# #IEC 60947-5-1# #CSA C22.2 No 14# #IEC 60947-4-1
Utilisation Category	AC-3# #AC-2# #AC-4# #AC-1# #AC-3e
