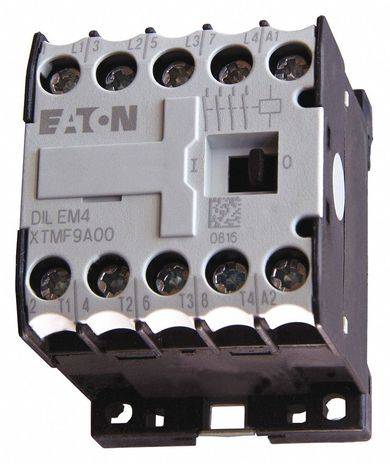

Eaton XTMF9A00E

H2574 IEC Mini Magnetic Contactor 208VAC 9A 4P

H2574 Miniature IEC Magnetic Contactor Full Load Amps-Inductive 9 A Full Load Amps-Resistive 20 A Number of Poles 4 Coil Volts 208 V AC Reversing No HP @ 1 Phase - 120V ½ hp HP @ 1 Phase - 240V 1 hp HP @ 3 Phase - 208V 2 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 5 hp HP @ 3 Phase - 575V 5 hp Enclosure NEMA Rating No Enclosure Hz 60 Height 1.77 in Width 1.77 in Depth 2.05 in Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947 Frame / Series / Class / Code Frame A
