Eaton E57LAL18T110S3

Name: Eaton E57LAL18T110S3
Brand: Eaton
SKU: CS410498
Price: 189.13 USD
Availability: OutOfStock

SKU: CS410498MPN: E57LAL18T110S3UPC/EAN: 782113790497

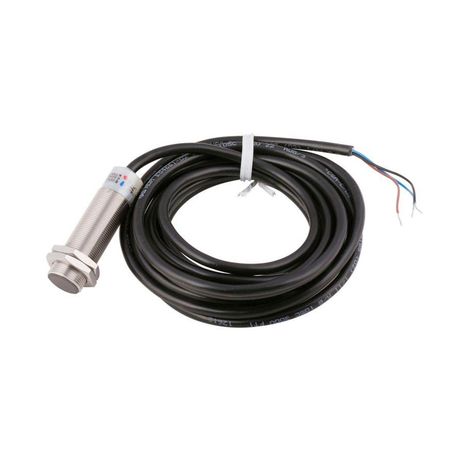

Eaton E57 inductive proximity sensor

Eaton E57LAL18T110E-Z, E57LAL18T110E3, E57LAL18T110E5, E57LAL18T110S3, E57LAL18T110S4, E57LAL18T110S5, E57LAL18T110SP, E57LAL18T110SPY1

$189.13

Unit

Available on backorder

Quantity

remove

add

Product Details

Inductive Proximity Sensor, E57, Straight, Shielded, 360° viewable LED, Cable, 9.8 ft, 500 mA at 6-30 Vdc, \<1% sensing range, PVC, NO NPN open collector, 6-48 Vdc

Attributes

Accuracy	< 1% sensing range
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	Cable
Contact Configuration	NO NPN open collector
Contact Rating	500 mA at 6-30 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E57
Type	Inductive Proximity Sensor
