Eaton E57LAL12T111

Name: Eaton E57LAL12T111
Brand: Eaton
SKU: CS447230
Availability: OutOfStock

SKU: CS447230MPN: E57LAL12T111UPC/EAN: 782113742984

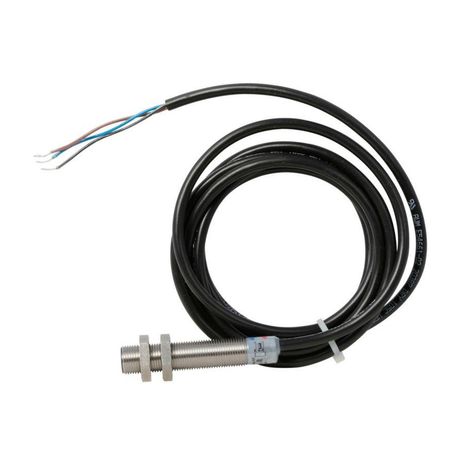

Eaton E57 inductive proximity sensor

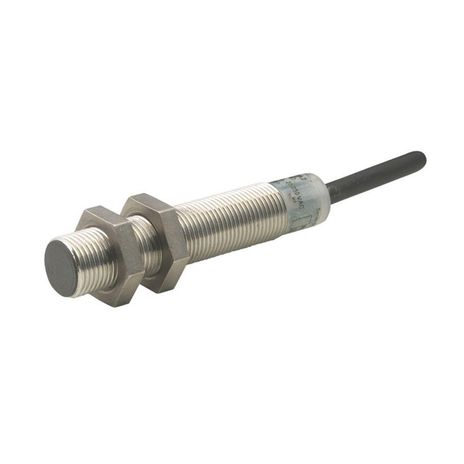

Eaton E57LAL12A2, E57LAL12A2E, E57LAL12A2E3, E57LAL12A2E4, E57LAL12A2E5, E57LAL12A2EA, E57LAL12A2EP, E57LAL12A2S3, E57LAL12A2S4, E57LAL12A2S5, E57LAL12A2SA, E57LAL12A2SP, E57LAL12T110, E57LAL12T110E3, E57LAL12T110E4

Product Details

Premium+ Inductive Proximity Sensor, E57, 2 mm range, Straight, 12 mm, Shielded, 360° viewable LED, 6.6 ft, 500 mA at 6-30 Vdc, \<1% sensing range, PVC, NO PNP open collector, 6-48 Vdc

Attributes

Accuracy	< 1% sensing range
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	NO PNP open collector
Contact Rating	500 mA at 6-30 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E57
Type	Premium+ Inductive Proximity Sensor
