Eaton E57LAL30T110S4

Name: Eaton E57LAL30T110S4
Brand: Eaton
SKU: CS787847
Price: 216.69 USD
Availability: OutOfStock

SKU: CS787847MPN: E57LAL30T110S4Alternate Part #s: E57LAL30T110S4EAT-E57LAL30T110S4UPC/EAN: 782113988245

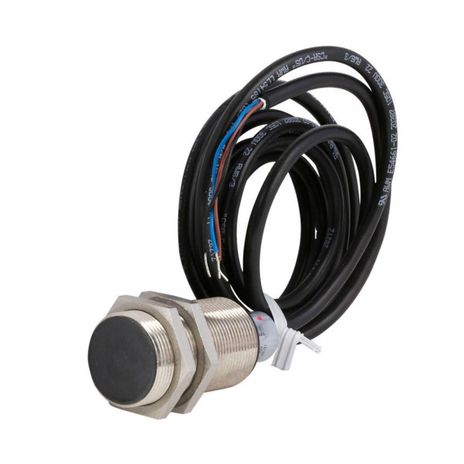

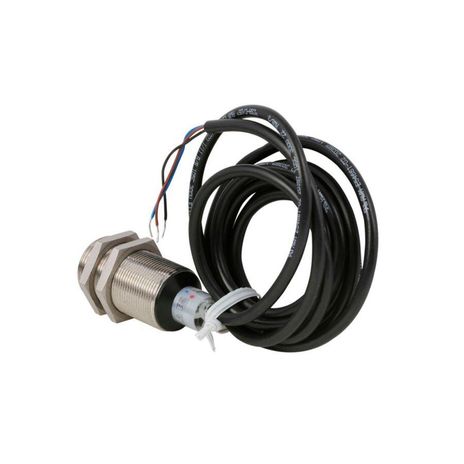

Eaton E57 inductive proximity sensor

Eaton E57LAL30T110E, E57LAL30T110E4, E57LAL30T110E5, E57LAL30T110EP, E57LAL30T110S3, E57LAL30T110SP, E57LAL30T110SPY1, E57LAL30T111

Product Details

Eaton Inductive Proximity Sensor, E57, Straight, Shielded, 360° viewable LED, 13.1 ft, 500 mA at 6-30 Vdc, \<3% sensing range, PVC, NO NPN open collector, 6-48 Vdc

Attributes

Accuracy	< 3% sensing range
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	NO NPN open collector
Contact Rating	500 mA at 6-30 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E57
Type	Inductive Proximity Sensor
