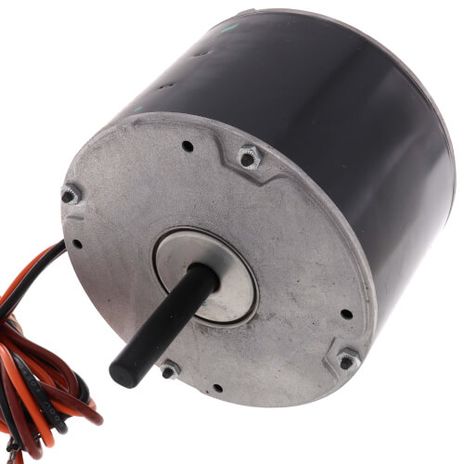

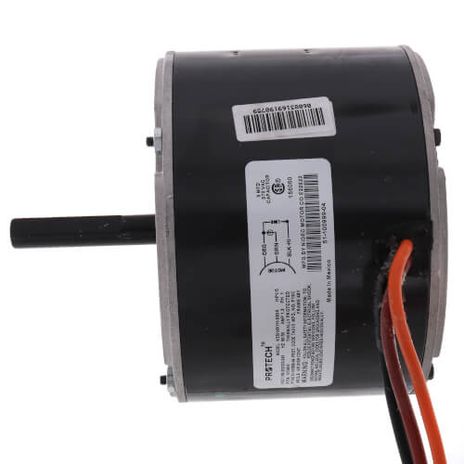

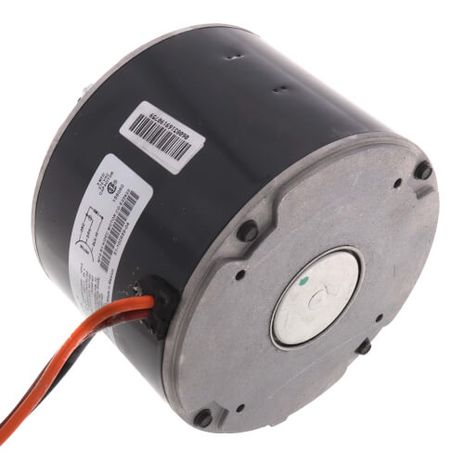

Rheem 51-100999-04

⅕ HP 1075 RPM Motor (208-230V)

⅕ HP 1075 RPM Motor (208-230V)

Specifications:

• HP: ⅕
• No. of Speeds: 1
• High Speed (RPM): 1075
• Input Voltage (V): 208
• Input Voltage (V): 220
• Input Voltage (V): 230
• No. of Phases: 1
• Frequency (Hz): 50
• Frequency (Hz): 60
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 3/370
• FLA at 230V (A): 1.30
• LRA at 230V (A): 2.23
• Shaft Diameter (in.): ½
• Motor Body Diameter (in.): 5-⅝
• Keyed/Flat Shaft Length (in.): 1-¾
• Overall Shaft Length (in.): 2-7/16
• Motor Body Length (in.): 4-1/16
• Overall Motor Length (in.): 6-½
• Mounting: Shell-band
• Mounting: End-boss
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Condenser
• Drive Type: Direct Drive
