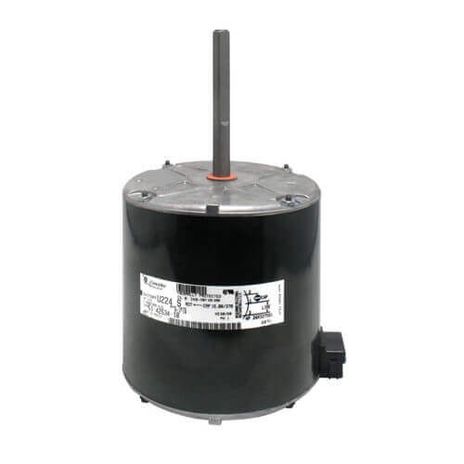

Rheem 51-42534-02 (R514253402)

⅓ HP 1075RPM Motor (380-415/460V)

⅓ HP 1075RPM Motor Specifications:

• Run Capacitor (uF/V): 10/370
• FLA at 460V (A): 1.00
• LRA at 460V (A): 1.80
• Shaft Diameter (in.): ½
• Motor Body Diameter (in.): 5-⅝
• Keyed/Flat Shaft Length (in.): 2-¾
• Overall Shaft Length (in.): 4-½
• Motor Body Length (in.): 5-½
• Overall Motor Length (in.): 9-15/16
• Mounting: Shell-band
• Frame Size: 48
• Bearing Type: Ball
• Application: Condenser
• Drive Type: Direct Drive

**Images may not represent actual product.**
