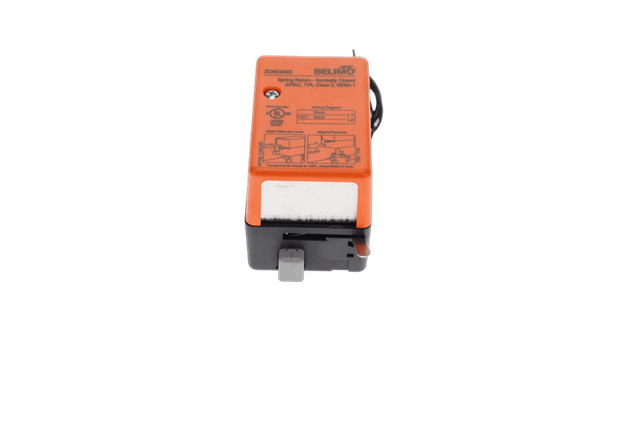

Belimo ZONE24NC-S

Name: Belimo ZONE24NC-S
Brand: Belimo
SKU: CS4063578
Price: 125.23 USD
Availability: InStock

SKU: CS4063578MPN: ZONE24NC-S

Valve Actuator, Spring return, AC 24 V, On/Off, 1 x SPST

$125.23

Unit

1 in stock

Quantity

remove

add

Documents

Valve Actuator, Spring return, AC 24 V, On/Off, 1 x SPST

Control	On/Off
Auxillary Switch	1 x SPST
Fail-Safe	Spring Return
Nominal Voltage	AC 24 V
Transformer Sizing	7 VA (class 2 power source)
Enclosure	UL Enclosure Type 1
Power Supply	24 VAC, ±10%, 50/60 Hz
Power Consumption In Operation	6.5 W
Electrical Connection	18” wire leads
Angle Of Rotation	90°
Position Indication	Mechanically (integrated)
Running Time (Motor)	40 s
Running Time Fail-Safe	<5 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	32…104°F [0…40°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP20
Degree Of Protection Nema/Ul	NEMA 1
Connection	cable
Servicing	maintenance-free
Nominal Voltage Ac	24 V
Noise Level, Motor	35 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	35 dB(A)
Agency Listing	CE, cULus
Auxiliary Switch	1 x SPST, 0.4 A resistive (0.4 A inductive) @ AC 24 V,
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
