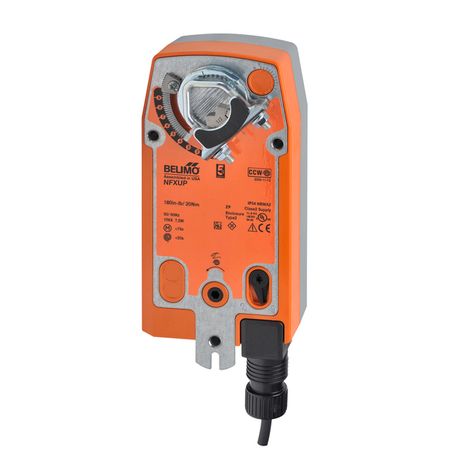

Belimo NFXUP

Name: Belimo NFXUP
Brand: Belimo
SKU: CS4062983
Price: 356.20 USD
Availability: OutOfStock

SKU: CS4062983MPN: NFXUP

Configurable, Damper Actuator, 90 in-lb [10 Nm], Spring return, AC 24...240 V / DC 24...125 V, On/Off

$356.20

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo NFXUP Data Sheet
Belimo NFB24, NFB24-MFT, NFB24-MFT-S, NFB24-S, NFB24-SR, NFB24-SR-S, NFBUP, NFBUP-S, NFX24, NFX24-MFT, NFX24-MFT-S, NFX24-S, NFX24-SR, NFX24-SR-S, NFXUP Installation Instructions

Product Details

Configurable Damper Actuator, 90 in-lb [10 Nm], Spring return, AC 24...240 V / DC 24...125 V, On/Off

Attributes

Control	On/Off
Fail-Safe	Spring Return
Torque	90 in-lb
Nominal Voltage	AC 24…240 V / DC 24…125 V
Transformer Sizing	6 VA @ AC 24 V (class 2 power source), 6.5 VA @ AC 120 V, 9.5 VA @ AC 240 V
Enclosure	UL Enclosure Type 2
Power Supply	24…240 VAC, -20% / +10%, 50/60 Hz, 24…125 VDC, ±10%
Power Consumption In Operation	6 W
Power Consumption In Rest Position	2.5 W
Electrical Connection	18 GA appliance cable, 3 ft [1 m], 10 ft [3 m] or 16ft [5 m], with or without ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	95°, adjustable with mechanical end stop, 35…95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	Galvanized steel and plastic housing
Nominal Voltage Dc	24…125 V
Nominal Voltage Ac	24…240 V
Noise Level, Motor	50 dB(A)
Torque Motor	90 in-lb [10 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter	½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
