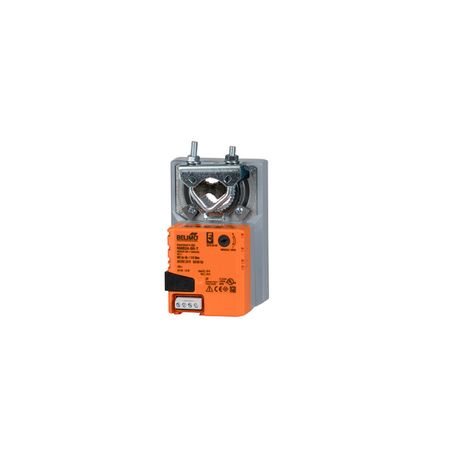

Belimo NMB24-SR-T

SKU: CS3349090MPN: NMB24-SR-T

Damper Actuator, 90 in-lb [10 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, terminals

Belimo NMB24-SR-T
$244.83
Unit
2 in stock
remove
add

Documents

Product Details

Damper Actuator, 90 in-lb [10 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, terminals

Attributes

Control modulating
Fail-Safe Non-Spring Return
Torque 90 in-lb
Nominal Voltage AC/DC 24 V
Transformer Sizing 5 VA (class 2 power source)
Enclosure UL Enclosure Type 1
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation 1.5 W
Power Consumption In Rest Position 0.4 W
Electrical Connection Screw terminal (for 26 to 14 GA wire)
Overload Protection electronic throughout 0…95° rotation
Operating Range 2…10 V, 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor)
Input Impedance 100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA
Position Feedback 2…10 V, Max. 0.5 mA
Angle Of Rotation Max. 95°, adjustable with mechanical stop
Direction Of Motion Motor selectable with switch 0/1
Position Indication reflective visual indicator (snap on)
Running Time (Motor) 95 s, constant, independent of load
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Degree Of Protection Iec/En IP20
Degree Of Protection Nema/Ul NEMA 1
Connection terminals
Servicing maintenance-free
Housing Material UL94-5VA
Nominal Voltage Dc 24 V
Nominal Voltage Ac 24 V
Noise Level, Motor 45 dB(A)
Torque Motor 90 in-lb [10 Nm]
Quality Standard ISO 9001
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter ½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Fail-Safe Function Non fail-safe
Control Type Web DC 2…10 V
Fail-Safe NO

Specifications

SKUCS3349090
MPNNMB24-SR-T
