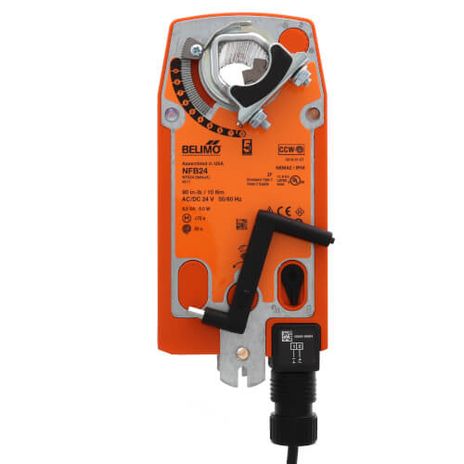

Belimo NFB24

Name: Belimo NFB24
Brand: Belimo
SKU: CS2095357
Price: 313.73 USD
Availability: InStock

SKU: CS2095357MPN: NFB24

Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, On/Off

$313.73

Unit

10+ Units Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Documents

Belimo NFB24 Data Sheet
Belimo NFB24, NFB24-MFT, NFB24-MFT-S, NFB24-S, NFB24-SR, NFB24-SR-S, NFBUP, NFBUP-S, NFX24, NFX24-MFT, NFX24-MFT-S, NFX24-S, NFX24-SR, NFX24-SR-S, NFXUP Installation Instructions

Product Details

Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, On/Off

Attributes

Control	On/Off
Fail-Safe	Spring Return
Torque	90 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	8.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, -10% / +20%
Power Consumption In Operation	6 W
Power Consumption In Rest Position	2.5 W
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	95°, adjustable with mechanical end stop, 35…95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	Galvanized steel and plastic housing
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	50 dB(A)
Torque Motor	90 in-lb [10 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus listed to UL60730-1A:02; UL 60730-2-14:02 and CAN/CSA-E60730-1:02; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter	½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
