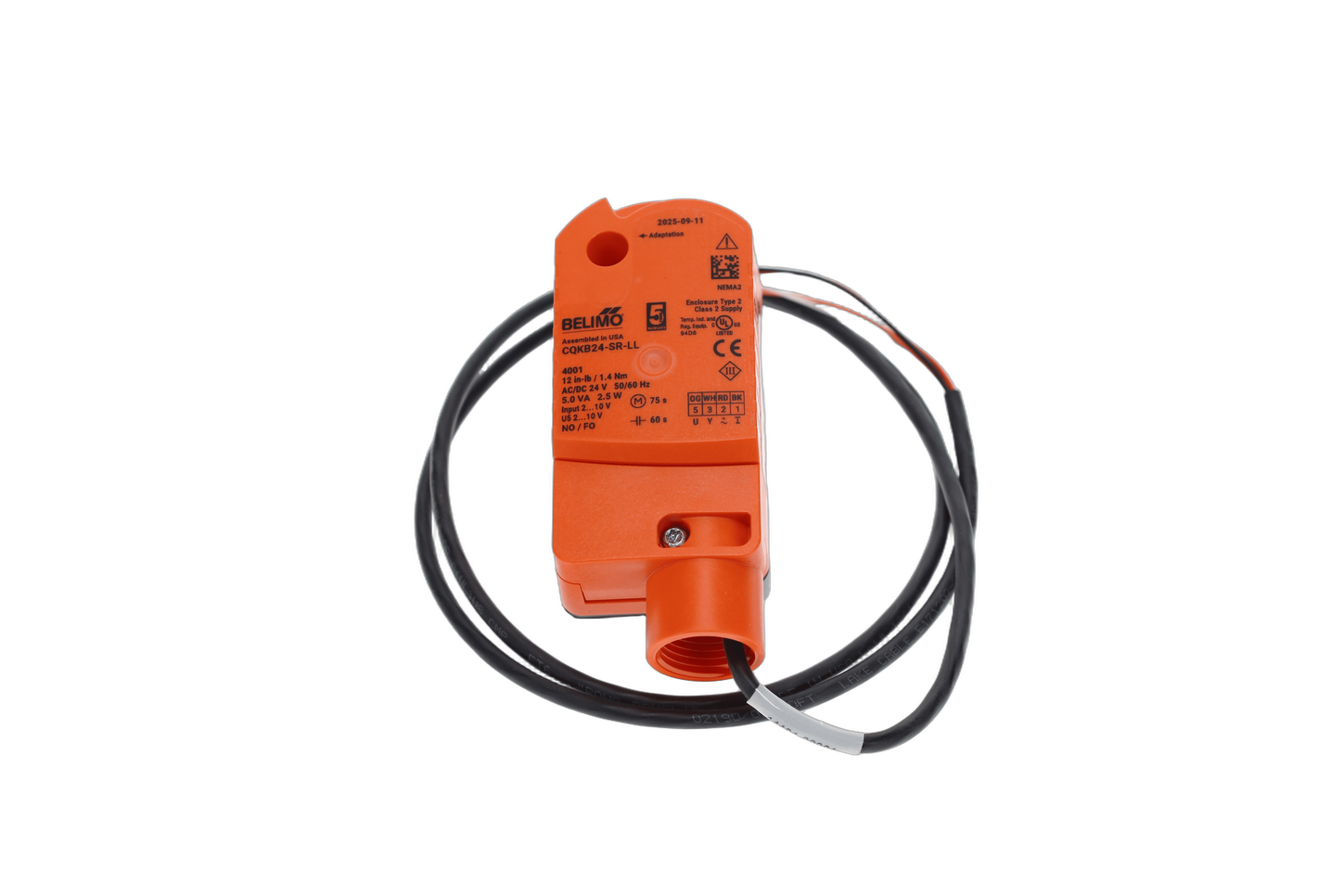

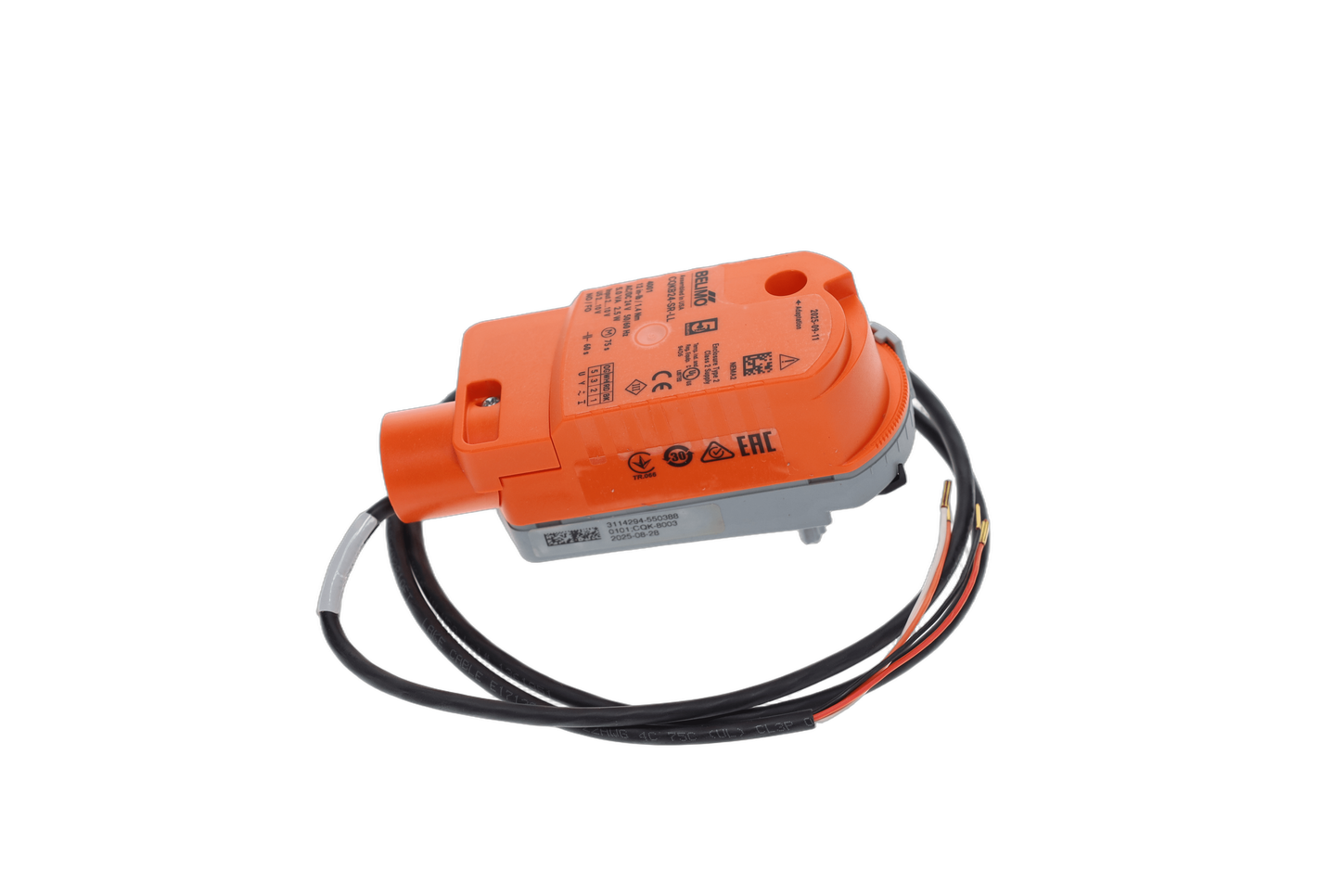

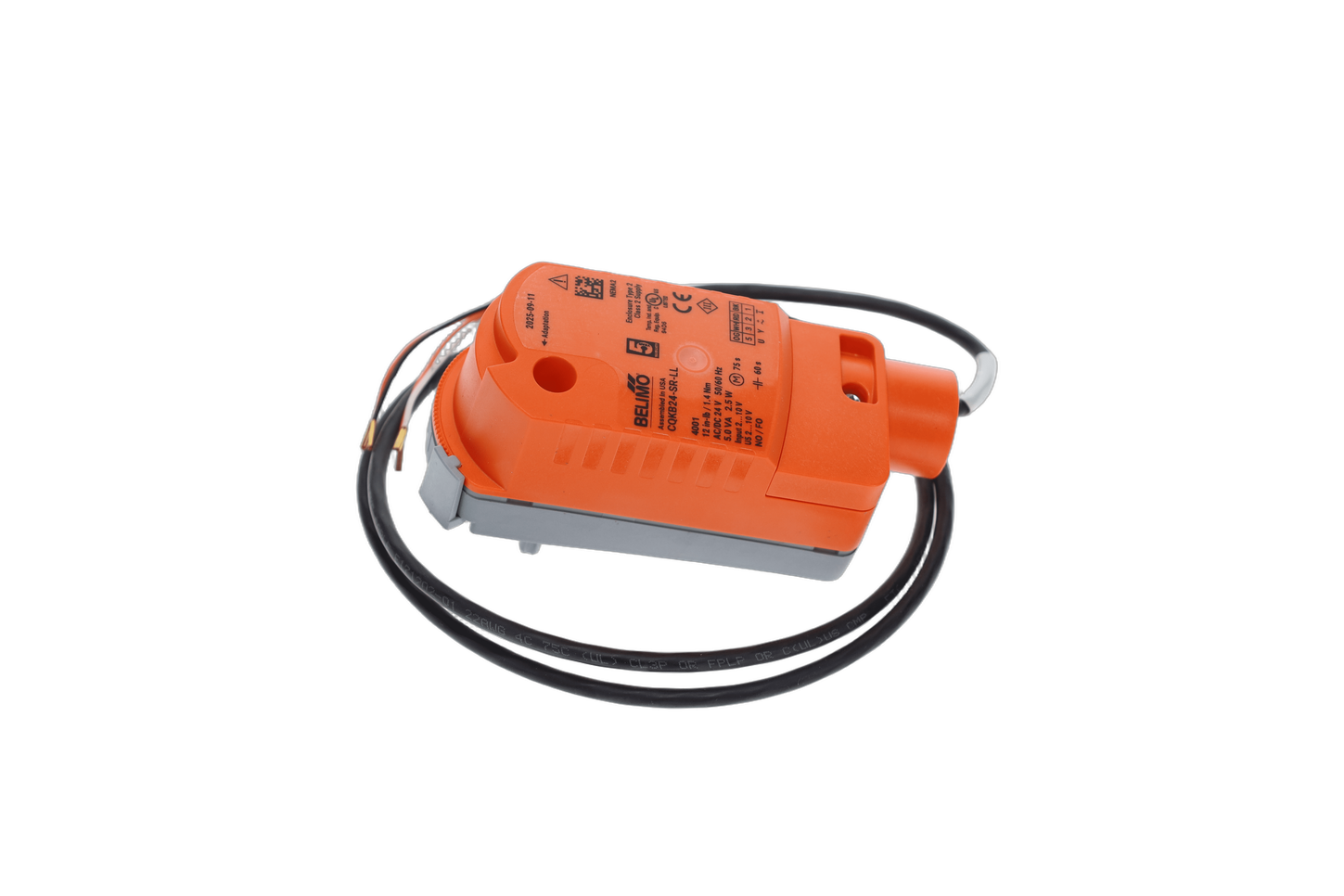

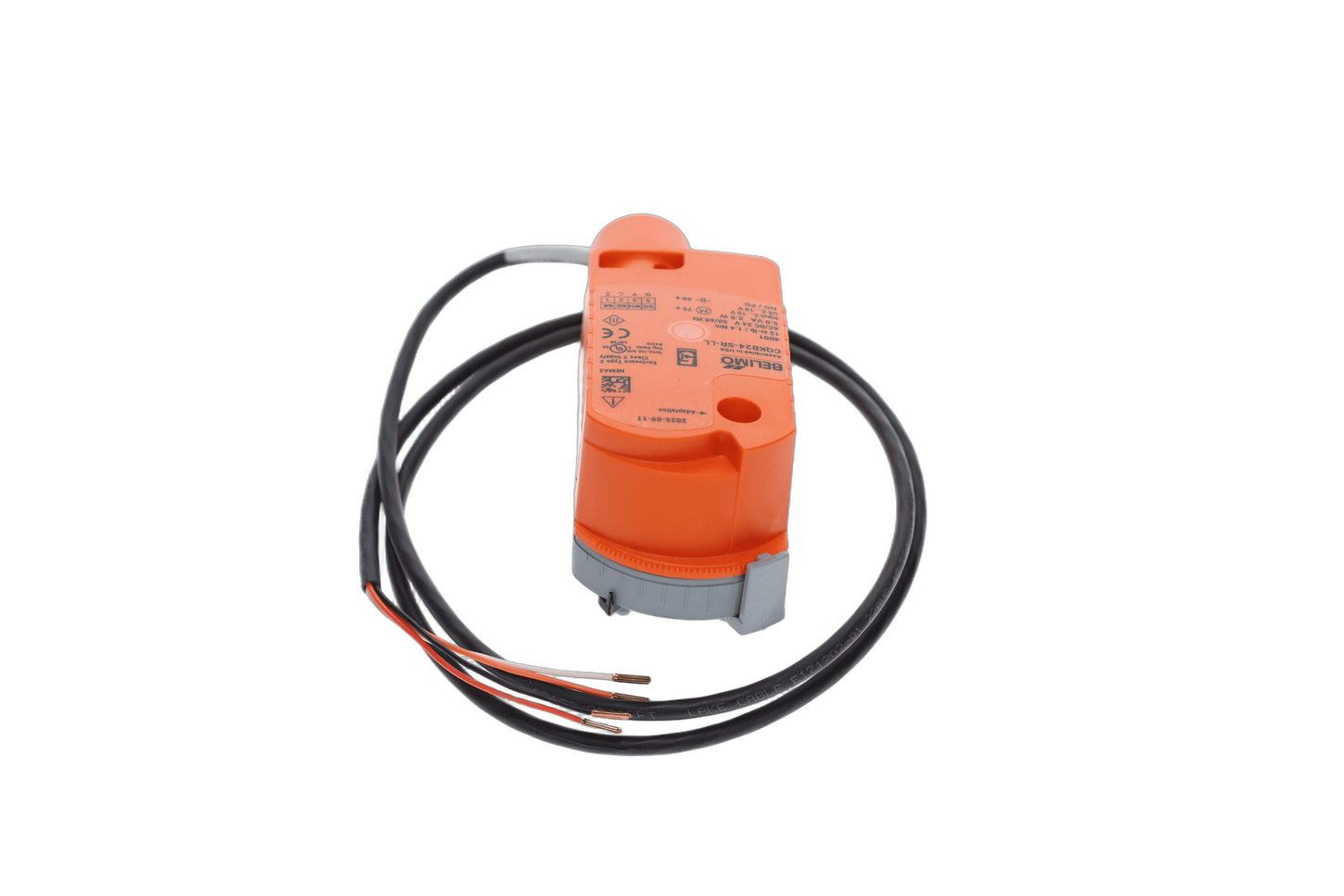

Belimo CQKB24-SR-LL

Name: Belimo CQKB24-SR-LL
Brand: Belimo
SKU: CS4062558
Price: 199.33 USD
Availability: InStock

SKU: CS4062558MPN: CQKB24-SR-LL

Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, Normally Open, Fail-safe position Open, modulating

$199.33

Unit

1 in stock

Quantity

remove

add

Documents

Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, Normally Open, Fail-safe position Open, modulating

Control	modulating
Fail-Safe	Electronic fail-safe 0…100%
Nominal Voltage	AC/DC 24 V
Transformer Sizing	5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	0.5 W
Electrical Connection	18 GA plenum cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic thoughout 0…90° rotation
Operating Range	2…10 V, 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor)
Position Feedback	2…10 V
Angle Of Rotation	90°, adjustable with mechanical stop
Position Indication	pointer
Running Time (Motor)	75 s
Running Time Fail-Safe	<60 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	1.7…40°C
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP40
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	35 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	35 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Fail-Safe Function	Electronic fail-safe
Control Type Web	DC 2…10 V
Fail-Safe	YES
